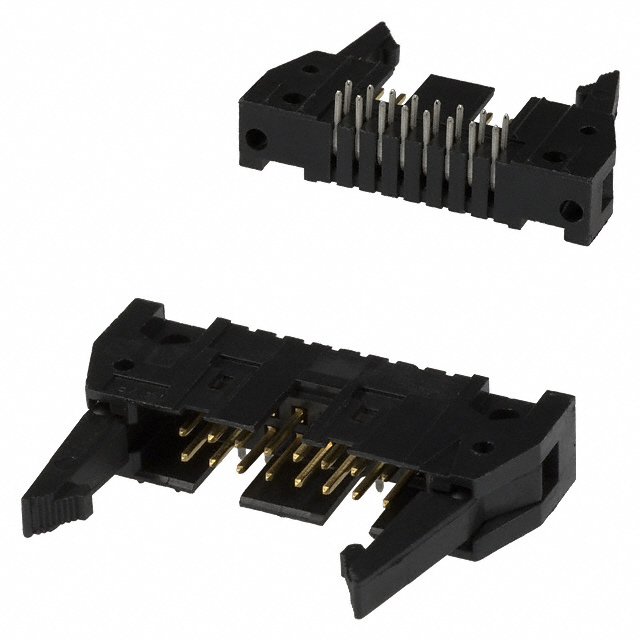

| Part Number | 5102322-3 | 5102322-6 | 5102322-8 | 5102322-4 | 5102321-3 | 5102322-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Connector Type | Header | Header | Header | Header | Header | Header |
| Contact Type | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Positions | 16 | 26 | 34 | 20 | 16 | 10 |
| Number of Rows | 2 | 2 | 2 | 2 | 2 | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Positions Loaded | All | All | All | All | All | All |
| Style | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole | Through Hole, Right Angle |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder |
| Fastening Type | Latch Lock/Eject Hooks, Long | Latch Lock/Eject Hooks, Long | Latch Lock/Eject Hooks, Long | Latch Lock/Eject Hooks, Long | Latch Lock/Eject Hooks, Long | Latch Lock/Eject Hooks, Long |
| Contact Length - Mating | 0.240" (6.10mm) | 0.240" (6.10mm) | 0.240" (6.10mm) | 0.240" (6.10mm) | 0.240" (6.10mm) | 0.240" (6.10mm) |
| Contact Length - Post | 0.155" (3.94mm) | 0.155" (3.94mm) | 0.155" (3.94mm) | 0.155" (3.94mm) | 0.155" (3.94mm) | 0.155" (3.94mm) |
| Overall Contact Length | - | - | - | - | 0.684" (17.37mm) | - |
| Insulation Height | 0.315" (8.00mm) | 0.315" (8.00mm) | 0.315" (8.00mm) | 0.315" (8.00mm) | 0.549" (13.94mm) | 0.315" (8.00mm) |
| Contact Shape | Square | Square | Square | Square | Square | Square |
| Contact Finish - Mating | Gold or Gold-Palladium | Gold or Gold-Palladium | Gold or Gold-Palladium | Gold or Gold-Palladium | Gold or Gold-Palladium | Gold or Gold-Palladium |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Tin | Tin | Tin | Tin | Tin |
| Contact Material | Brass | Brass | Brass | Brass | - | Brass |
| Insulation Material | - | - | - | - | - | - |
| Features | Keying Slot, Mounting Flange | Keying Slot, Mounting Flange | Keying Slot, Mounting Flange | Keying Slot, Mounting Flange | Keying Slot, Mounting Flange | Keying Slot, Mounting Flange |
| Operating Temperature | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C | -65°C ~ 105°C |
| Ingress Protection | - | - | - | - | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Insulation Color | Black | Black | Black | Black | Black | Black |
| Current Rating (Amps) | 1A per Contact | 1A per Contact | 1A per Contact | 1A per Contact | 1A per Contact | 1A per Contact |
| Voltage Rating | 250VAC | 250VAC | 250VAC | 250VAC | 250VAC | 250VAC |
