5102156-9
  • Share:

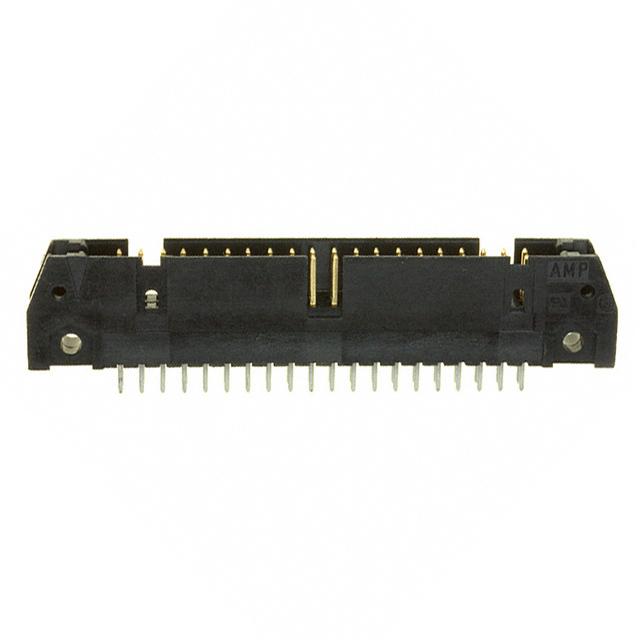

TE Connectivity AMP Connectors 5102156-9

Manufacturer No:
5102156-9
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
5102156-9 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 40POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:40
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Cable/Wire
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.240" (6.10mm)
Contact Length - Post:0.155" (3.94mm)
Overall Contact Length:0.684" (17.37mm)
Insulation Height:0.549" (13.94mm)
Contact Shape:Square
Contact Finish - Mating:Gold or Gold-Palladium
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:-
Insulation Material:-
Features:Keying Slot, Mounting Flange
Operating Temperature:-65°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):1A per Contact
Voltage Rating:250VAC
0 Remaining View Similar

In Stock

$5.99
6

Please send RFQ , we will respond immediately.

Similar Products

Part Number 5102156-9 5102159-9   5102153-9   5102154-9   5102156-3   5102156-4   5102156-5   5102156-6   5102156-8
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active Active Active Active Active Active Active
Connector Type Header Header Header Header Header Header Header Header Header
Contact Type Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin Male Pin
Pitch - Mating 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm)
Number of Positions 40 40 40 40 16 20 24 26 34
Number of Rows 2 2 2 2 2 2 2 2 2
Row Spacing - Mating 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm)
Number of Positions Loaded All All All All All All All All All
Style Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire Board to Cable/Wire
Shrouding Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall Shrouded - 4 Wall
Mounting Type Through Hole Through Hole, Right Angle Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole Through Hole
Termination Solder Solder Solder Solder Solder Solder Solder Solder Solder
Fastening Type Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull Push-Pull
Contact Length - Mating 0.240" (6.10mm) 0.240" (6.10mm) 0.240" (6.10mm) 0.240" (6.10mm) 0.240" (6.10mm) 0.240" (6.10mm) 0.240" (6.10mm) 0.240" (6.10mm) 0.240" (6.10mm)
Contact Length - Post 0.155" (3.94mm) 0.110" (2.79mm) 0.110" (2.79mm) 0.110" (2.79mm) 0.155" (3.94mm) 0.155" (3.94mm) 0.155" (3.94mm) 0.155" (3.94mm) 0.155" (3.94mm)
Overall Contact Length 0.684" (17.37mm) - 0.639" (16.23mm) 0.639" (16.23mm) 0.684" (17.37mm) 0.684" (17.37mm) 0.684" (17.37mm) 0.684" (17.37mm) 0.684" (17.37mm)
Insulation Height 0.549" (13.94mm) 0.315" (8.00mm) 0.549" (13.94mm) 0.549" (13.94mm) 0.549" (13.94mm) 0.549" (13.94mm) 0.549" (13.94mm) 0.549" (13.94mm) 0.549" (13.94mm)
Contact Shape Square Square Square Square Square Square Square Square Square
Contact Finish - Mating Gold or Gold-Palladium Gold or Gold-Palladium Gold or Gold-Palladium Gold or Gold-Palladium Gold or Gold-Palladium Gold or Gold-Palladium Gold or Gold-Palladium Gold or Gold-Palladium Gold or Gold-Palladium
Contact Finish Thickness - Mating 30.0µin (0.76µm) 15.0µin (0.38µm) 15.0µin (0.38µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm) 30.0µin (0.76µm)
Contact Finish - Post Tin Tin Tin Tin Tin Tin Tin Tin Tin
Contact Material - Brass - - - - - - -
Insulation Material - - - - - - - - -
Features Keying Slot, Mounting Flange Keying Slot, Mounting Flange Mounting Flange Keying Slot, Mounting Flange Keying Slot, Mounting Flange Keying Slot, Mounting Flange Keying Slot, Mounting Flange Keying Slot, Mounting Flange Keying Slot, Mounting Flange
Operating Temperature -65°C ~ 105°C -65°C ~ 105°C -55°C ~ 105°C -65°C ~ 105°C -65°C ~ 105°C -65°C ~ 105°C -65°C ~ 105°C -65°C ~ 105°C -65°C ~ 105°C
Ingress Protection - - - - - - - - -
Material Flammability Rating UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0 UL94 V-0
Insulation Color Black Black Black Black Black Black Black Black Black
Current Rating (Amps) 1A per Contact 1A per Contact 1A per Contact 1A per Contact 1A per Contact 1A per Contact 1A per Contact 1A per Contact 1A per Contact
Voltage Rating 250VAC 250VAC - - 250VAC 250VAC 250VAC 250VAC 250VAC
