TE Connectivity AMP Connectors-5102153-5 - Rectangular Connectors - Headers, Male Pins Product Specifications and Latest Quotes

Part Number	5102153-5	5102153-8	5102153-6	5102153-7	5102153-9	5102156-5	5102154-5	5102153-1	5102153-2	5102153-3	5102153-4
Manufacturer	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors
Product Status	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active
Connector Type	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Positions	24	34	26	30	40	24	24	10	14	16	20
Number of Rows	2	2	2	2	2	2	2	2	2	2	2
Row Spacing - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Positions Loaded	All	All	All	All	All	All	All	All	All	All	All
Style	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Fastening Type	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull
Contact Length - Mating	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)
Contact Length - Post	0.110" (2.79mm)	0.110" (2.79mm)	0.110" (2.79mm)	0.110" (2.79mm)	0.110" (2.79mm)	0.155" (3.94mm)	0.110" (2.79mm)	0.110" (2.79mm)	0.110" (2.79mm)	0.110" (2.79mm)	0.110" (2.79mm)
Overall Contact Length	0.639" (16.23mm)	0.639" (16.23mm)	0.639" (16.23mm)	0.639" (16.23mm)	0.639" (16.23mm)	0.684" (17.37mm)	0.639" (16.23mm)	0.639" (16.23mm)	0.639" (16.23mm)	0.639" (16.23mm)	0.639" (16.23mm)
Insulation Height	0.549" (13.94mm)	0.549" (13.94mm)	0.549" (13.94mm)	0.549" (13.94mm)	0.549" (13.94mm)	0.549" (13.94mm)	0.549" (13.94mm)	0.549" (13.94mm)	0.549" (13.94mm)	0.549" (13.94mm)	0.549" (13.94mm)
Contact Shape	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square	Square
Contact Finish - Mating	Gold or Gold-Palladium	Gold or Gold-Palladium	Gold or Gold-Palladium	Gold or Gold-Palladium	Gold or Gold-Palladium	Gold or Gold-Palladium	Gold or Gold-Palladium	Gold or Gold-Palladium	Gold or Gold-Palladium	Gold or Gold-Palladium	Gold or Gold-Palladium
Contact Finish Thickness - Mating	15.0µin (0.38µm)	15.0µin (0.38µm)	15.0µin (0.38µm)	15.0µin (0.38µm)	15.0µin (0.38µm)	30.0µin (0.76µm)	30.0µin (0.76µm)	15.0µin (0.38µm)	15.0µin (0.38µm)	15.0µin (0.38µm)	15.0µin (0.38µm)
Contact Finish - Post	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin	Tin
Contact Material	-	-	-	-	-	-	-	-	-	-	-
Insulation Material	-	-	-	-	-	-	-	-	-	-	-
Features	Mounting Flange	Mounting Flange	Mounting Flange	Mounting Flange	Mounting Flange	Keying Slot, Mounting Flange	Keying Slot, Mounting Flange	Mounting Flange	Mounting Flange	Mounting Flange	Mounting Flange
Operating Temperature	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-65°C ~ 105°C	-65°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C
Ingress Protection	-	-	-	-	-	-	-	-	-	-	-
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Insulation Color	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black	Black
Current Rating (Amps)	1A per Contact	1A per Contact	1A per Contact	1A per Contact	1A per Contact	1A per Contact	1A per Contact	1A per Contact	1A per Contact	1A per Contact	1A per Contact
Voltage Rating	-	-	-	-	-	250VAC	-	-	-	-	-

Connector Type:	Header
Contact Type:	Male Pin
Pitch - Mating:	0.100" (2.54mm)
Number of Positions:	24
Number of Rows:	2
Row Spacing - Mating:	0.100" (2.54mm)
Number of Positions Loaded:	All
Style:	Board to Cable/Wire
Shrouding:	Shrouded - 4 Wall
Mounting Type:	Through Hole
Termination:	Solder
Fastening Type:	Push-Pull
Contact Length - Mating:	0.240" (6.10mm)
Contact Length - Post:	0.110" (2.79mm)
Overall Contact Length:	0.639" (16.23mm)
Insulation Height:	0.549" (13.94mm)
Contact Shape:	Square
Contact Finish - Mating:	Gold or Gold-Palladium
Contact Finish Thickness - Mating:	15.0µin (0.38µm)
Contact Finish - Post:	Tin
Contact Material:	-
Insulation Material:	-
Features:	Mounting Flange
Operating Temperature:	-55°C ~ 105°C
Ingress Protection:	-
Material Flammability Rating:	UL94 V-0
Insulation Color:	Black
Current Rating (Amps):	1A per Contact
Voltage Rating:	-

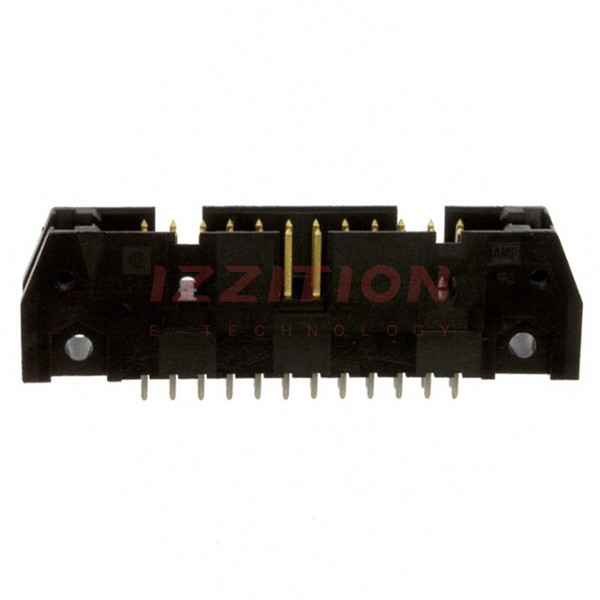

TE Connectivity AMP Connectors 5102153-5
