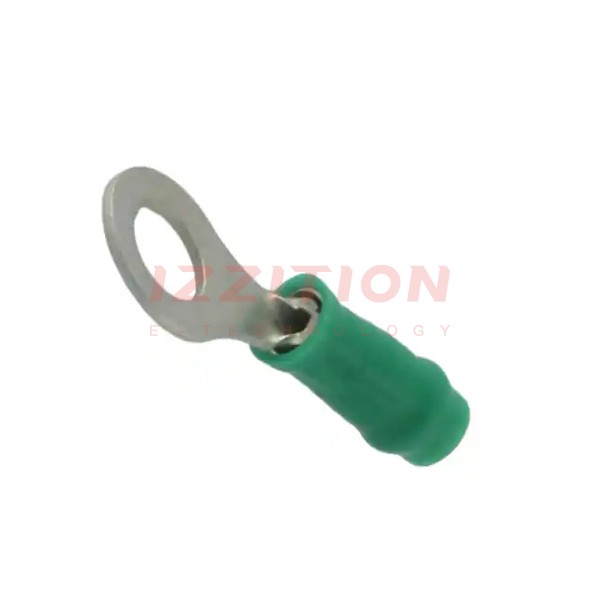

| Part Number | 50832-3 | 50832-1 | 50832-2 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Terminal Type | Circular | Circular | Circular |
| Stud/Tab Size | 10 Stud | 10 Stud | 8 Stud |
| Thickness | 0.023" (0.58mm) | 0.023" (0.58mm) | 0.023" (0.58mm) |
| Width - Outer Edges | 0.312" (7.92mm) | 0.312" (7.92mm) | 0.312" (7.92mm) |
| Length - Overall | 0.840" (21.34mm) | 0.840" (21.34mm) | 0.840" (21.34mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Termination | Crimp | Crimp | Crimp |
| Wire Gauge | 20-22 AWG | 20-22 AWG | 20-22 AWG |
| Insulation | Insulated | Insulated | Insulated |
| Features | Serrated Termination | Serrated Termination | Serrated Termination |
| Color | Green | Green | Green |
| Contact Material | Copper | Copper | Copper |
| Contact Finish | Nickel | Nickel | Nickel |
