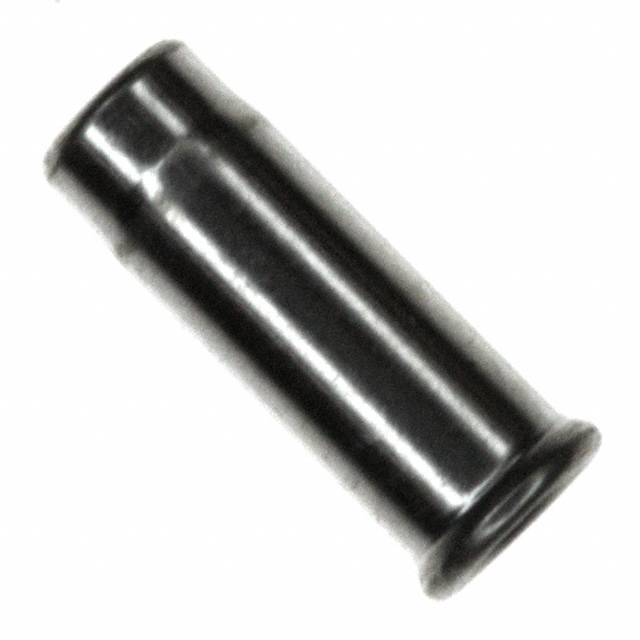

| Part Number | 5050871-6 | 5050871-8 | 5050871-1 | 5050871-5 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Tail Type | No Tail | No Tail | No Tail | No Tail |
| Termination | Solder | Solder | Solder | Solder |
| Length - Overall | 0.288" (7.32mm) | 0.288" (7.32mm) | 0.288" (7.32mm) | 0.288" (7.32mm) |
| Accepts Pin Diameter | 0.042" ~ 0.049" (1.07mm ~ 1.24mm) | 0.042" ~ 0.049" (1.07mm ~ 1.24mm) | 0.042" ~ 0.049" (1.07mm ~ 1.24mm) | 0.042" ~ 0.049" (1.07mm ~ 1.24mm) |
| Accepts Square Pin Size | - | - | - | - |
| Pin Hole Diameter | - | - | - | - |
| Mounting Hole Diameter | 0.101" ~ 0.103" (2.57mm ~ 2.62mm) | 0.101" ~ 0.103" (2.57mm ~ 2.62mm) | 0.101" ~ 0.103" (2.57mm ~ 2.62mm) | 0.101" ~ 0.103" (2.57mm ~ 2.62mm) |
| Flange Diameter | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) | 0.118" (3.00mm) |
| Tail Diameter | - | - | - | - |
| Socket Depth | 0.275" (6.99mm) | 0.275" (6.99mm) | 0.275" (6.99mm) | 0.275" (6.99mm) |
| Contact Material | Beryllium Copper | Beryllium Copper | Beryllium Copper | Beryllium Copper |
| Contact Finish | Tin | Tin | Gold | Gold |
| Contact Finish Thickness | 100.0µin (2.54µm) | 100.0µin (2.54µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
