Please send RFQ , we will respond immediately.

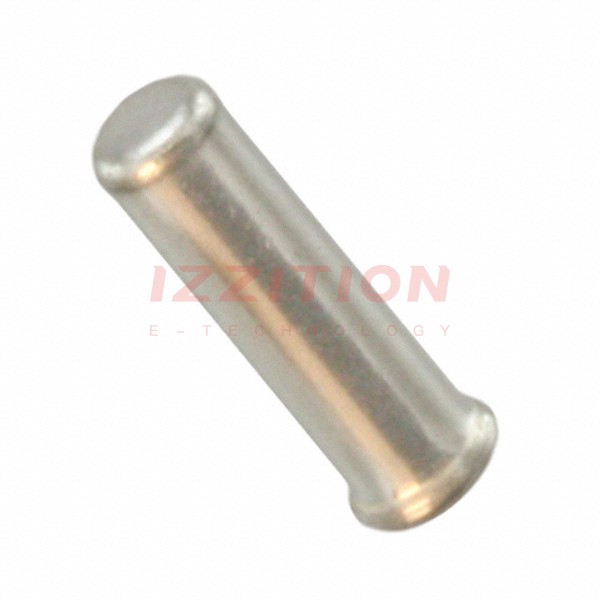

| Part Number | 5050865-8 | 5050863-8 | 5050864-8 | 5050865-1 | 5050865-3 | 5050865-5 | 5050865-6 | 5050865-7 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active |
| Tail Type | No Tail | No Tail | No Tail | No Tail | No Tail | No Tail | No Tail | No Tail |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder |
| Length - Overall | 0.260" (6.60mm) | 0.260" (6.60mm) | 0.257" (6.53mm) | 0.260" (6.60mm) | 0.260" (6.60mm) | 0.260" (6.60mm) | 0.260" (6.60mm) | 0.260" (6.60mm) |
| Accepts Pin Diameter | 0.034" ~ 0.041" (0.86mm ~ 1.04mm) | 0.014" ~ 0.026" (0.36mm ~ 0.66mm) | 0.026" ~ 0.033" (0.66mm ~ 0.84mm) | 0.034" ~ 0.041" (0.86mm ~ 1.04mm) | 0.034" ~ 0.041" (0.86mm ~ 1.04mm) | 0.034" ~ 0.041" (0.86mm ~ 1.04mm) | 0.034" ~ 0.041" (0.86mm ~ 1.04mm) | 0.034" ~ 0.041" (0.86mm ~ 1.04mm) |
| Accepts Square Pin Size | - | - | - | - | - | - | - | - |
| Pin Hole Diameter | - | - | - | - | - | - | - | - |
| Mounting Hole Diameter | 0.072" (1.83mm) | 0.052" (1.32mm) | 0.062" ~ 0.063" (1.57mm ~ 1.60mm) | 0.072" (1.83mm) | 0.072" (1.83mm) | 0.072" (1.83mm) | 0.072" (1.83mm) | 0.072" (1.83mm) |
| Flange Diameter | 0.089" (2.26mm) | 0.070" (1.77mm) | 0.080" (2.03mm) | 0.089" (2.26mm) | 0.089" (2.26mm) | 0.089" (2.26mm) | 0.089" (2.26mm) | 0.089" (2.26mm) |
| Tail Diameter | - | - | - | - | - | - | - | - |
| Socket Depth | 0.247" (6.27mm) | 0.247" (6.27mm) | 0.244" (6.20mm) | 0.247" (6.27mm) | 0.247" (6.27mm) | 0.247" (6.27mm) | 0.247" (6.27mm) | 0.247" (6.27mm) |
| Contact Material | Beryllium Copper | Beryllium Copper | Beryllium Copper | Beryllium Copper | Beryllium Copper | Beryllium Copper | Beryllium Copper | Beryllium Copper |
| Contact Finish | Tin | Tin | Tin | Gold | Gold | Gold | Tin | Tin |
| Contact Finish Thickness | 100.0µin (2.54µm) | 100.0µin (2.54µm) | 100.0µin (2.54µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 100.0µin (2.54µm) | 100.0µin (2.54µm) |
