5050865-3
  • Share:

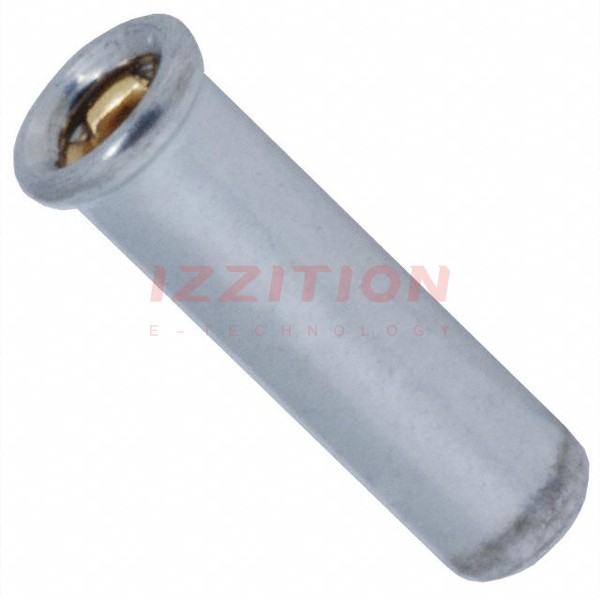

TE Connectivity AMP Connectors 5050865-3

Manufacturer No:
5050865-3
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
5050865-3 Datasheet
ECAD Model:
-
Description:
CONN PIN RCPT .034-.041 SOLDER
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Tail Type:No Tail
Termination:Solder
Length - Overall:0.260" (6.60mm)
Accepts Pin Diameter:0.034" ~ 0.041" (0.86mm ~ 1.04mm)
Accepts Square Pin Size:-
Pin Hole Diameter:-
Mounting Hole Diameter:0.072" (1.83mm)
Flange Diameter:0.089" (2.26mm)
Tail Diameter:-
Socket Depth:0.247" (6.27mm)
Contact Material:Beryllium Copper
Contact Finish:Gold
Contact Finish Thickness:30.0µin (0.76µm)
0 Remaining View Similar

In Stock

$0.76
337

Please send RFQ , we will respond immediately.

Similar Products

Part Number 5050865-3 5050865-5   5050865-7   5050865-6   5050865-8   5050865-1
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Active Active Active Active Active
Tail Type No Tail No Tail No Tail No Tail No Tail No Tail
Termination Solder Solder Solder Solder Solder Solder
Length - Overall 0.260" (6.60mm) 0.260" (6.60mm) 0.260" (6.60mm) 0.260" (6.60mm) 0.260" (6.60mm) 0.260" (6.60mm)
Accepts Pin Diameter 0.034" ~ 0.041" (0.86mm ~ 1.04mm) 0.034" ~ 0.041" (0.86mm ~ 1.04mm) 0.034" ~ 0.041" (0.86mm ~ 1.04mm) 0.034" ~ 0.041" (0.86mm ~ 1.04mm) 0.034" ~ 0.041" (0.86mm ~ 1.04mm) 0.034" ~ 0.041" (0.86mm ~ 1.04mm)
Accepts Square Pin Size - - - - - -
Pin Hole Diameter - - - - - -
Mounting Hole Diameter 0.072" (1.83mm) 0.072" (1.83mm) 0.072" (1.83mm) 0.072" (1.83mm) 0.072" (1.83mm) 0.072" (1.83mm)
Flange Diameter 0.089" (2.26mm) 0.089" (2.26mm) 0.089" (2.26mm) 0.089" (2.26mm) 0.089" (2.26mm) 0.089" (2.26mm)
Tail Diameter - - - - - -
Socket Depth 0.247" (6.27mm) 0.247" (6.27mm) 0.247" (6.27mm) 0.247" (6.27mm) 0.247" (6.27mm) 0.247" (6.27mm)
Contact Material Beryllium Copper Beryllium Copper Beryllium Copper Beryllium Copper Beryllium Copper Beryllium Copper
Contact Finish Gold Gold Tin Tin Tin Gold
Contact Finish Thickness 30.0µin (0.76µm) 30.0µin (0.76µm) 100.0µin (2.54µm) 100.0µin (2.54µm) 100.0µin (2.54µm) 30.0µin (0.76µm)
