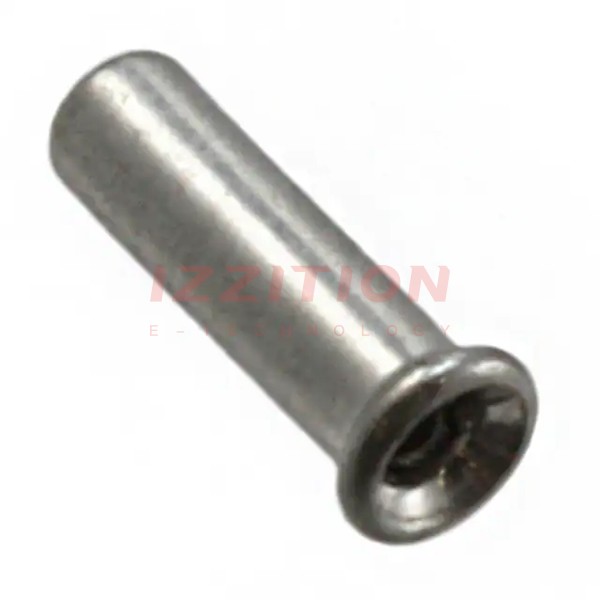

| Part Number | 50462-7 | 50462-8 | 50462-2 | 50462-6 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Obsolete | Active |
| Tail Type | No Tail | No Tail | No Tail | No Tail |
| Termination | Solder | Solder | Solder | Solder |
| Length - Overall | 0.178" (4.52mm) | 0.178" (4.52mm) | 0.178" (4.52mm) | 0.178" (4.52mm) |
| Accepts Pin Diameter | 0.014" ~ 0.026" (0.36mm ~ 0.66mm) | 0.014" ~ 0.026" (0.36mm ~ 0.66mm) | 0.014" ~ 0.026" (0.36mm ~ 0.66mm) | 0.014" ~ 0.026" (0.36mm ~ 0.66mm) |
| Accepts Square Pin Size | - | - | - | - |
| Pin Hole Diameter | - | - | - | - |
| Mounting Hole Diameter | 0.052" (1.32mm) | 0.052" (1.32mm) | 0.052" (1.32mm) | 0.052" (1.32mm) |
| Flange Diameter | 0.070" (1.77mm) | 0.070" (1.77mm) | 0.070" (1.77mm) | 0.070" (1.77mm) |
| Tail Diameter | - | - | - | - |
| Socket Depth | 0.165" (4.19mm) | 0.165" (4.19mm) | 0.165" (4.19mm) | 0.165" (4.19mm) |
| Contact Material | Beryllium Copper | Beryllium Copper | Beryllium Copper | Beryllium Copper |
| Contact Finish | Tin | Gold | Gold | Gold |
| Contact Finish Thickness | 100.0µin (2.54µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
