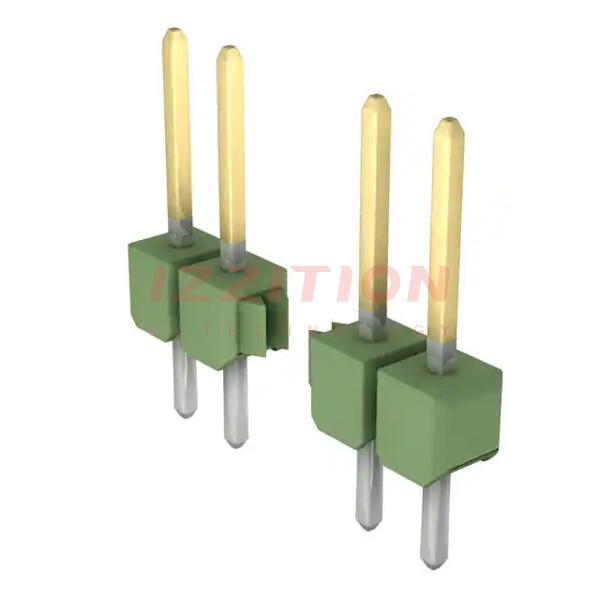

TE Connectivity AMP Connectors 5-828129-0

Manufacturer No:
5-828129-0
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
5-828129-0 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 50POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:50
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.787" (20.00mm)
Contact Length - Post:0.126" (3.20mm)
Overall Contact Length:1.024" (26.00mm)
Insulation Height:0.110" (2.79mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:31.5µin (0.80µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Polybutylene Terephthalate (PBT)
Features:-
Operating Temperature:-65°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Green
Current Rating (Amps):5A
Voltage Rating:-
0 Remaining View Similar

In Stock

-
46

Please send RFQ , we will respond immediately.
