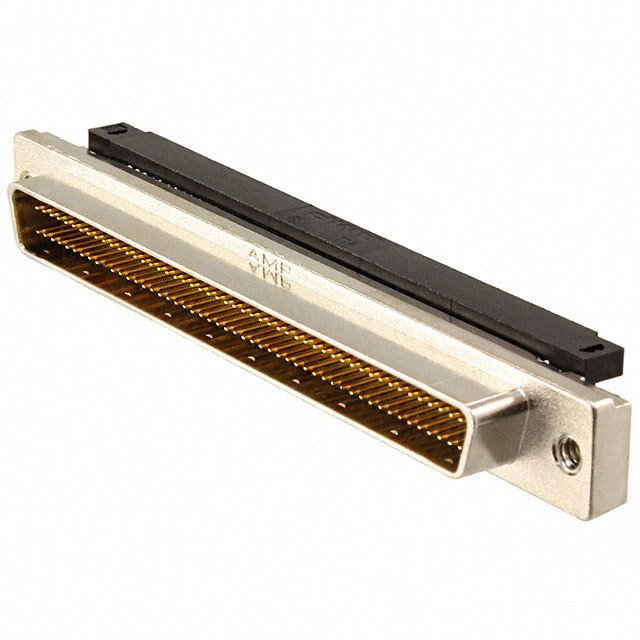

| Part Number | 5-749879-9 | 5-749877-9 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Style | D-Type | D-Type |
| Connector Type | Plug, Male Pins | Receptacle, Female Sockets |
| Number of Positions | 100 | 100 |
| Number of Rows | 2 | 2 |
| Mounting Type | Panel Mount | Panel Mount |
| Shell Size, Connector Layout | 0.050 Pitch x 0.100 Row to Row | 0.050 Pitch x 0.100 Row to Row |
| Contact Type | Signal | Signal |
| Flange Feature | Housing/Shell (4-40) | Housing/Shell (4-40) |
| Termination | IDC, Ribbon Cable | IDC, Ribbon Cable |
| Primary Material | - | - |
| Shell Material, Finish | - | Steel, Nickel Plated |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | - | - |
| Ingress Protection | - | - |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Current Rating (Amps) | 1A | 1A |
| Backset Spacing | - | - |
| Features | Terminating Cover | Terminating Cover |
