Please send RFQ , we will respond immediately.

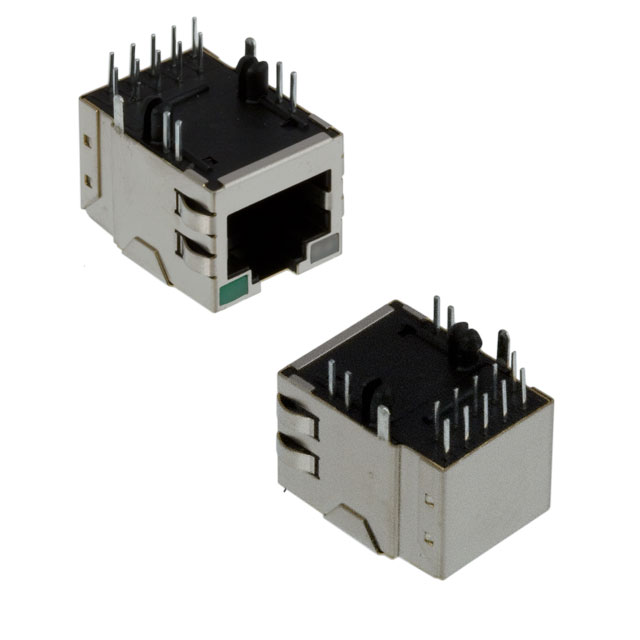

| Part Number | 5-6605809-5 | 5-6605809-7 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TRP Connector B.V. |
| Product Status | Active | Obsolete |
| Connector Type | RJ45 | RJ45 |
| Number of Ports | 1 | 1 |
| Number of Rows | 1 | 1 |
| Applications | 10/100/1000 Base-T, AutoMDIX | 10/100/1000 Base-T, AutoMDIX |
| Mounting Type | Through Hole | Through Hole |
| Orientation | 90° Angle (Right) | 90° Angle (Right) |
| Termination | Solder | Solder |
| Height Above Board | 0.555" (14.10mm) | 0.555" (14.10mm) |
| LED Color | Green, Yellow - Green | Green - Green |
| Number of Cores per Jack | 8 | 8 |
| Shielding | Shielded, EMI Finger | Shielded, EMI Finger |
| Features | Board Lock, Decoupling Capacitance | Board Lock, Decoupling Capacitance |
| Tab Direction | Up | Up |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | Gold | Gold |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C |
