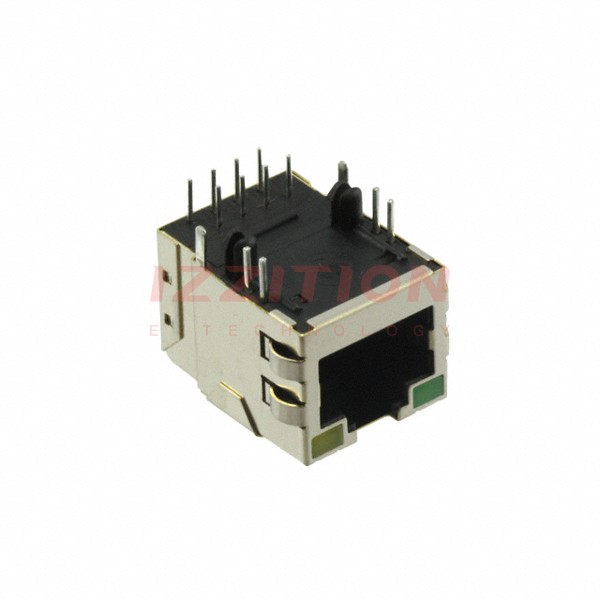

| Part Number | 5-6605786-1 | 6-6605786-1 | 5-6605706-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TRP Connector B.V. |
| Product Status | Active | Active | Obsolete |
| Connector Type | RJ45 | RJ45 | RJ45 |
| Number of Ports | 1 | 1 | 1 |
| Number of Rows | 1 | 1 | 1 |
| Applications | 10/100 Base-T, AutoMDIX | 10/100 Base-T, AutoMDIX | 10/100 Base-T |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Orientation | 90° Angle (Right) | 90° Angle (Right) | 90° Angle (Right) |
| Termination | Solder | Solder | Solder |
| Height Above Board | 0.555" (14.10mm) | 0.555" (14.10mm) | 0.555" (14.10mm) |
| LED Color | Green - Yellow | Green - Green | Green - Yellow |
| Number of Cores per Jack | 6 | 6 | 5 |
| Shielding | Shielded, EMI Finger | Shielded, EMI Finger | Shielded, EMI Finger |
| Features | Board Lock, Decoupling Capacitance | Board Lock, Decoupling Capacitance | Board Lock, Decoupling Capacitance |
| Tab Direction | Up | Up | Up |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | Gold | Gold | Gold |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
