5-626249-0
  • Share:

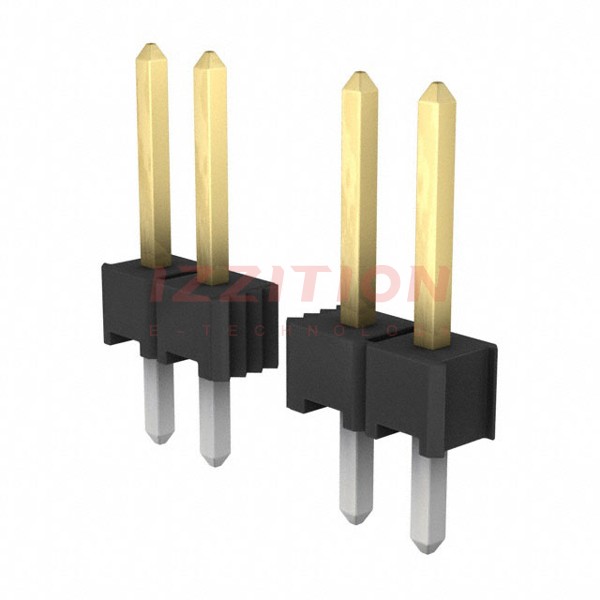

TE Connectivity AMP Connectors 5-626249-0

Manufacturer No:
5-626249-0
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
5-626249-0 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 50POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:50
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:-
Contact Length - Mating:0.240" (6.10mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:-
Contact Shape:-
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:15.0µin (0.38µm)
Contact Finish - Post:-
Contact Material:-
Insulation Material:-
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

-
432

Please send RFQ , we will respond immediately.
