5-534245-6
  • Share:

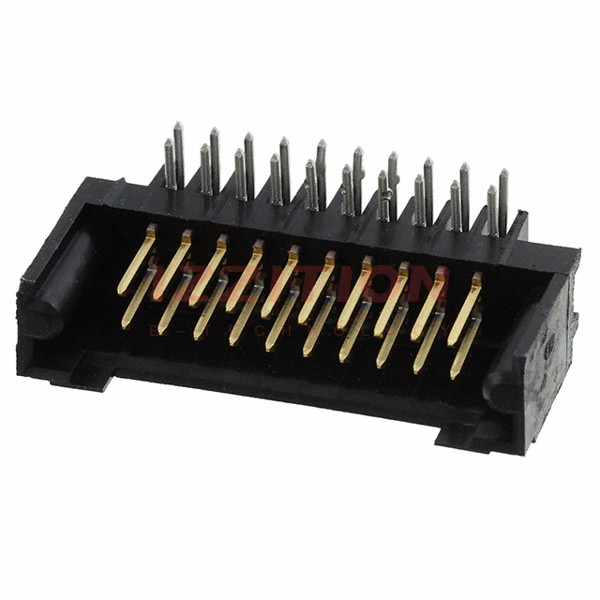

TE Connectivity AMP Connectors 5-534245-6

Manufacturer No:
5-534245-6
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tube
Datasheet:
5-534245-6 Datasheet
ECAD Model:
-
Description:
CONN HEADER R/A 20POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:20
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 3 Wall
Mounting Type:Through Hole, Right Angle
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.320" (8.13mm)
Contact Length - Post:0.125" (3.18mm)
Overall Contact Length:-
Insulation Height:0.319" (8.10mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Thermoplastic, Glass Filled
Features:-
Operating Temperature:-65°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):2A
Voltage Rating:250VAC
0 Remaining View Similar

In Stock

$6.58
95

Please send RFQ , we will respond immediately.
