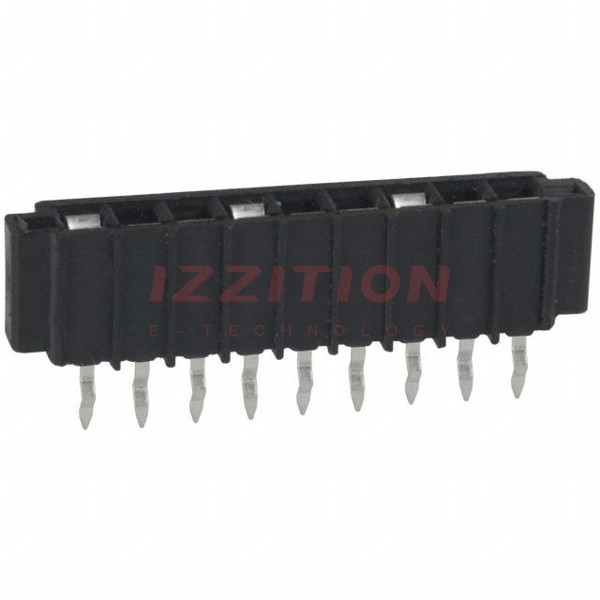

| Part Number | 5-520316-9 | 5-520314-9 | 5-520315-9 | 5-520316-8 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Obsolete |
| Flat Flex Type | FFC, FPC | FFC, FPC | FFC, FPC | FFC, FPC |
| Mounting Type | Through Hole | Through Hole, Right Angle | Through Hole | Through Hole |
| Connector/Contact Type | Contacts, Vertical - 1 Sided | Contacts, Top | Contacts, Vertical - 1 Sided | Contacts, Vertical - 1 Sided |
| Number of Positions | 9 | 9 | 9 | 8 |
| Pitch | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Termination | Kinked Pin | Kinked Pin | Kinked Pin | Kinked Pin |
| FFC, FCB Thickness | 0.13mm ~ 0.38mm | 0.13mm ~ 0.38mm | 0.13mm ~ 0.38mm | 0.13mm ~ 0.38mm |
| Height Above Board | 0.273" (6.93mm) | 0.190" (4.83mm) | 0.273" (6.93mm) | 0.273" (6.93mm) |
| Locking Feature | - | - | - | - |
| Cable End Type | Straight | Straight | Straight | Straight |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Contact Finish | Tin | Tin | Tin | Tin |
| Housing Material | Polyester Thermoplastic, Glass Filled | Polyester Thermoplastic, Glass Filled | Polyester Thermoplastic, Glass Filled | Polyester Thermoplastic, Glass Filled |
| Actuator Material | - | - | - | - |
| Features | - | - | - | - |
| Voltage Rating | 250V | 250V | 250V | 250V |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C | -55°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
