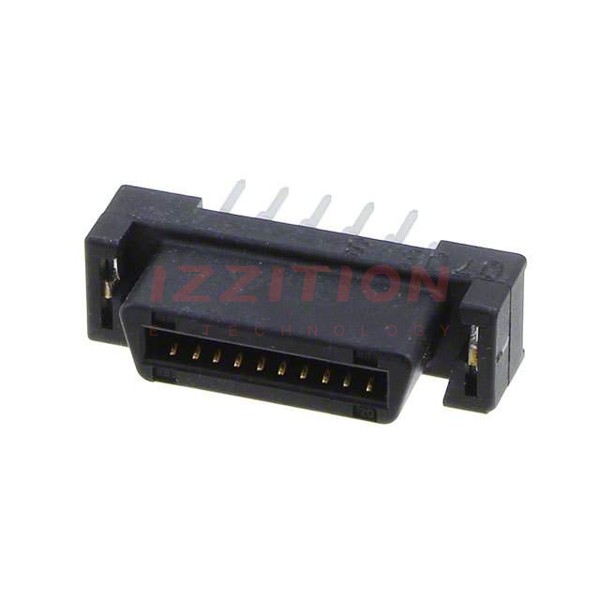

| Part Number | 5-5175475-1 | 5-5175475-8 | 5-5175472-1 | 5-5175473-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Style | Outer Shroud Contacts | Outer Shroud Contacts | Center Strip Contacts | Center Strip Contacts |
| Connector Type | Receptacle | Receptacle | Plug | Plug |
| Number of Positions | 20 | 68 | 20 | 20 |
| Number of Rows | 2 | 2 | 2 | 2 |
| Mounting Type | Through Hole | Through Hole | Through Hole, Right Angle | Through Hole |
| Termination | Solder | Solder | Solder | Solder |
| Flange Feature | - | - | - | - |
| Type | Board to Board, High Density | Board to Board, High Density | Board to Board, High Density | Board to Board |
| Features | Board Lock | Board Lock | Board Lock | Board Lock |
| Contact Finish | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
