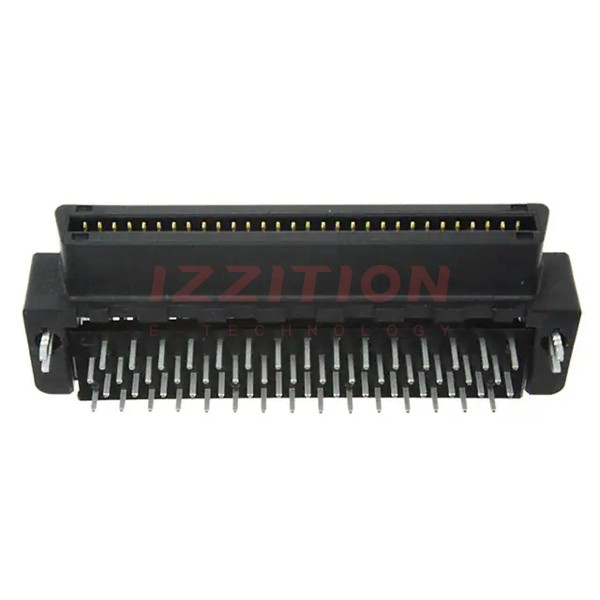

| Part Number | 5-5175474-7 | 5-5175472-7 | 5-5175474-5 | 5-5175474-6 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Style | Outer Shroud Contacts | Center Strip Contacts | Outer Shroud Contacts | Outer Shroud Contacts |
| Connector Type | Receptacle | Plug | Receptacle | Receptacle |
| Number of Positions | 60 | 60 | 40 | 50 |
| Number of Rows | 2 | 2 | 2 | 2 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Solder | Solder | Solder | Solder |
| Flange Feature | - | - | - | - |
| Type | Board to Board, High Density | Board to Board, High Density | Board to Board, High Density | Board to Board, High Density |
| Features | Board Lock | Board Lock | Board Lock | Board Lock |
| Contact Finish | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
