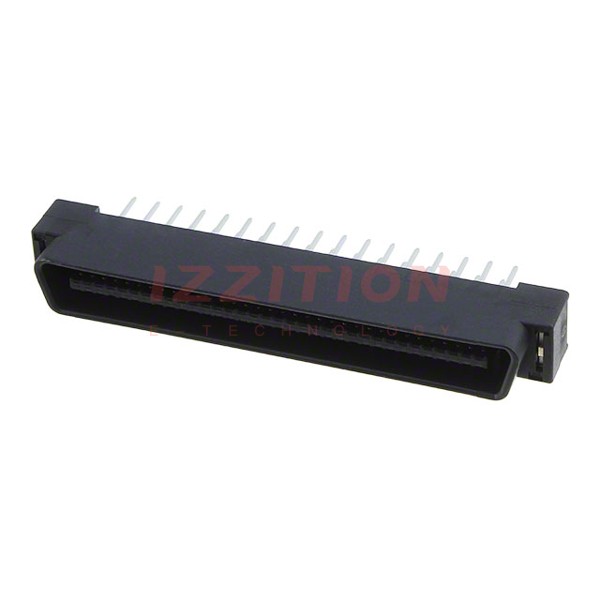

| Part Number | 5-5175473-8 | 5-5175475-8 | 5-5175473-9 | 3-5175473-8 | 5-5175472-8 | 5-5175473-1 | 5-5175473-3 | 5-5175473-6 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Obsolete | Active |
| Connector Style | Center Strip Contacts | Outer Shroud Contacts | Center Strip Contacts | Center Strip Contacts | Center Strip Contacts | Center Strip Contacts | Center Strip Contacts | Center Strip Contacts |
| Connector Type | Plug | Receptacle | Plug | Plug | Plug | Plug | Plug | Plug |
| Number of Positions | 68 | 68 | 80 | 68 | 68 | 20 | 30 | 50 |
| Number of Rows | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole, Right Angle | Through Hole | Through Hole | Through Hole |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder |
| Flange Feature | - | - | - | - | - | - | - | - |
| Type | Board to Board | Board to Board, High Density | Board to Board | Board to Board | Board to Board, High Density | Board to Board | Board to Board | Board to Board |
| Features | Board Lock | Board Lock | Board Lock | Board Lock | Board Lock | Board Lock | Board Lock | Board Lock |
| Contact Finish | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 20.0µin (0.51µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
