Please send RFQ , we will respond immediately.

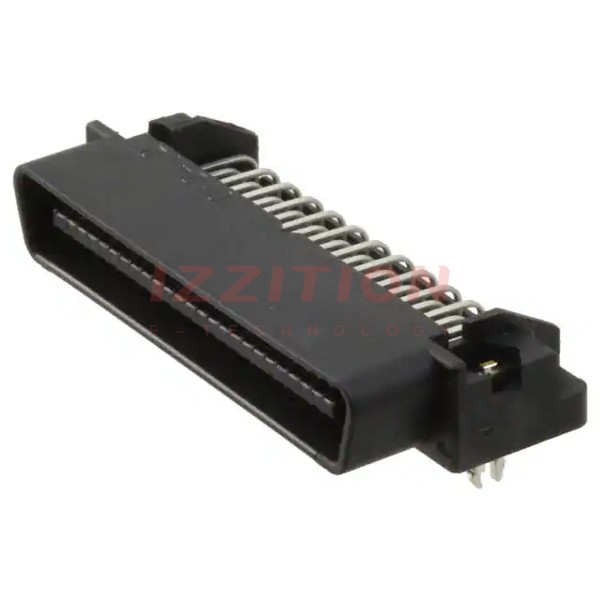

| Part Number | 5-5175472-6 | 5-5175472-8 | 5-5175473-6 | 5-5175474-6 | 5-5175472-7 | 3-5175472-6 | 5-5175472-1 | 5-5175472-3 | 5-5175472-5 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Obsolete | Active |
| Connector Style | Center Strip Contacts | Center Strip Contacts | Center Strip Contacts | Outer Shroud Contacts | Center Strip Contacts | Center Strip Contacts | Center Strip Contacts | Center Strip Contacts | Center Strip Contacts |
| Connector Type | Plug | Plug | Plug | Receptacle | Plug | Plug | Plug | Plug | Plug |
| Number of Positions | 50 | 68 | 50 | 50 | 60 | 50 | 20 | 30 | 40 |
| Number of Rows | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle | Through Hole, Right Angle |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder | Solder |
| Flange Feature | - | - | - | - | - | - | - | - | - |
| Type | Board to Board, High Density | Board to Board, High Density | Board to Board | Board to Board, High Density | Board to Board, High Density | Board to Board, High Density | Board to Board, High Density | Board to Board, High Density | Board to Board, High Density |
| Features | Board Lock | Board Lock | Board Lock | Board Lock | Board Lock | Board Lock | Board Lock | Board Lock | Board Lock |
| Contact Finish | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 8.00µin (0.203µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
