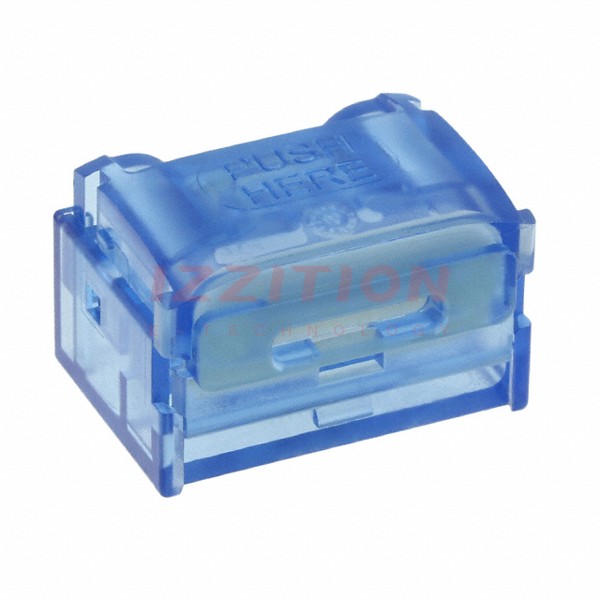

| Part Number | 5-293522-1 | 5-293522-2 | 5-293521-1 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete |
| Style | Cable/Wire to Cable/Wire | Cable/Wire to Cable/Wire | Cable/Wire to Cable/Wire |
| Connector Type | Splice | Splice | Splice |
| Number of Positions | 4 | 4 | 6 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) - Feed Through |
| Termination | IDC | IDC | IDC |
| Pitch | 0.098" (2.50mm) | 0.098" (2.50mm) | - |
| Fastening Type | - | - | - |
| Features | Gel Filled | Gel Filled | Gel Filled |
| Housing Color | Blue, Transparent | Green, Transparent | Transparent |
| Wire Gauge | 24 AWG, 26 AWG | 24 AWG, 26 AWG | 18 AWG, 20 AWG, 24 AWG, 26 AWG |
| Contact Material | - | - | - |
| Contact Finish | - | - | - |
| Housing Material | Polycarbonate (PC) | Polycarbonate (PC) | Polycarbonate (PC) |
| Operating Temperature | -40°C ~ 100°C | -40°C ~ 100°C | -40°C ~ 100°C |
