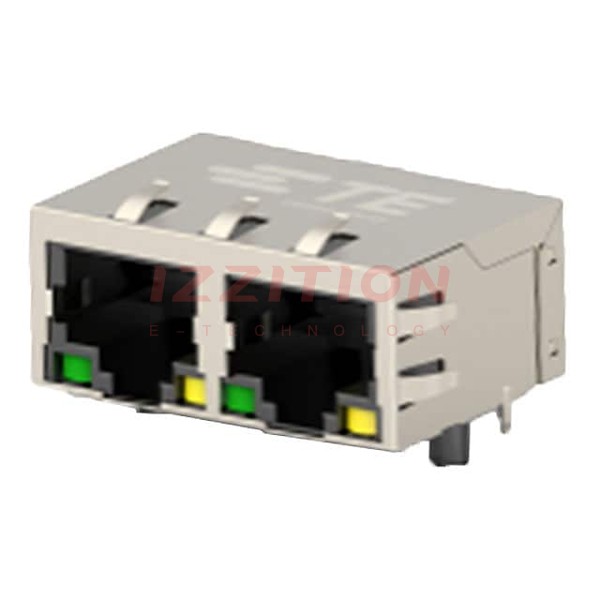

| Part Number | 5-2337994-4 | 5-2337992-4 | 5-2337994-3 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active |
| Connector Type | RJ45 | RJ45 | RJ45 |
| Number of Ports | 2 | 1 | 2 |
| Number of Rows | 1 | 1 | 1 |
| Applications | 10/100 Base-T, AutoMDIX, Power over Ethernet (PoE) | 10/100 Base-T, AutoMDIX, Power over Ethernet (PoE) | 10/100 Base-T, AutoMDIX, Power over Ethernet (PoE) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Orientation | 90° Angle (Right) | 90° Angle (Right) | 90° Angle (Right) |
| Termination | Solder | Solder | Solder |
| Height Above Board | 0.539" (13.69mm) | 0.539" (13.69mm) | 0.531" (13.49mm) |
| LED Color | Green - Yellow | Green - Yellow | Green - Yellow |
| Number of Cores per Jack | 4 | 4 | 4 |
| Shielding | Shielded, EMI Finger | Shielded, EMI Finger | Shielded, EMI Finger |
| Features | Board Guide | Board Guide | Board Guide |
| Tab Direction | Down | Down | Up |
| Contact Material | Copper Alloy | Copper Alloy | Copper Alloy |
| Contact Finish | Gold | Gold | Gold |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
