5-2337826-1
  • Share:

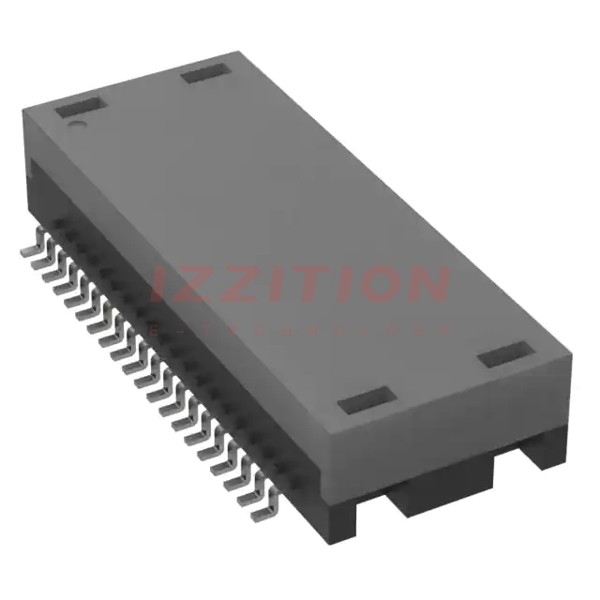

TE Connectivity AMP Connectors 5-2337826-1

Manufacturer No:
5-2337826-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Tube
Datasheet:
5-2337826-1 Datasheet
ECAD Model:
-
Description:
DISCRETE ETHERNET MAGNETICS QUAD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Turns Ratio - Primary:Secondary:1CT:1CT
Impedance - Primary (Ohms):-
Impedance - Secondary (Ohms):-
DC Resistance (DCR) - Primary:-
DC Resistance (DCR) - Secondary:-
Transformer Type:-
Frequency Range:-
Frequency Response:-
Voltage - Isolation:1500Vrms
Insertion Loss:-1dB Max @ 100kHz ~ 100MHz
Return Loss:-18dB Min @ 1MHz ~ 30MHz
Power Level:-
Operating Temperature:-40°C ~ 105°C
Approval Agency:-
Mounting Type:Surface Mount
Size / Dimension:1.232" L x 0.482" W (31.30mm x 12.25mm)
Height - Seated (Max):0.285" (7.24mm)
Termination Style:Gull Wing
0 Remaining View Similar

In Stock

$7.66
80

Please send RFQ , we will respond immediately.
