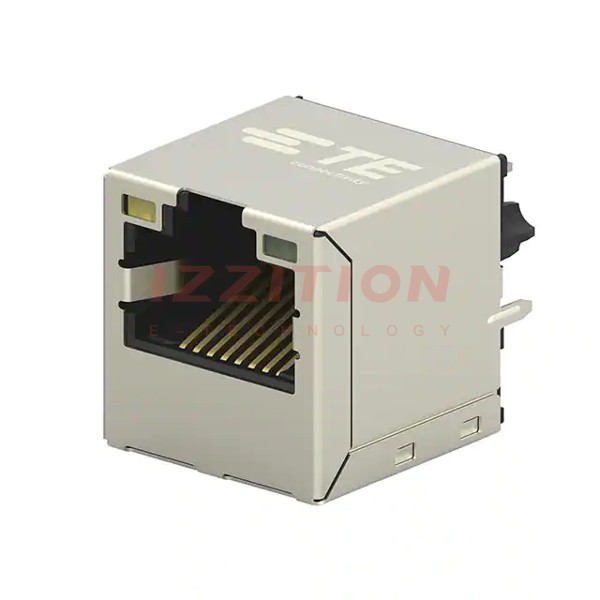

| Part Number | 5-2301995-4 | 5-2301996-4 | 5-2301994-4 | 5-2301995-1 | 5-2301995-2 | 5-2301995-3 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Connector Type | RJ45 | RJ45 | RJ45 | RJ45 | RJ45 | RJ45 |
| Number of Ports | 1 | 2 | 1 | 1 | 1 | 1 |
| Number of Rows | 1 | 1 | 1 | 1 | 1 | 1 |
| Applications | 10/100/1000 Base-T, AutoMDIX | 10/100/1000 Base-T, AutoMDIX | 10/100 Base-T, AutoMDIX | 10/100/1000 Base-T, AutoMDIX | 10/100 Base-T, AutoMDIX | 10/100 Base-T, AutoMDIX |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Orientation | Vertical | 90° Angle (Right) | 90° Angle (Right) | Vertical | Vertical | Vertical |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder |
| Height Above Board | 0.665" (16.90mm) | 0.531" (13.49mm) | 0.531" (13.49mm) | 0.665" (16.90mm) | 0.665" (16.90mm) | 0.665" (16.90mm) |
| LED Color | Green, Yellow - Green, Yellow | Does Not Contain LED | Does Not Contain LED | Does Not Contain LED | Does Not Contain LED | Green, Yellow - Green, Yellow |
| Number of Cores per Jack | 8 | 8 | 4 | 8 | 4 | 4 |
| Shielding | Shielded | Shielded, EMI Finger | Shielded, EMI Finger | Shielded | Shielded | Shielded |
| Features | Board Lock | Board Lock | Board Lock | Board Lock | Board Lock | Board Lock |
| Tab Direction | Up | Down | Down | Up | Up | Up |
| Contact Material | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy | Copper Alloy |
| Contact Finish | Gold | Gold | Gold | Gold | Gold | Gold |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
