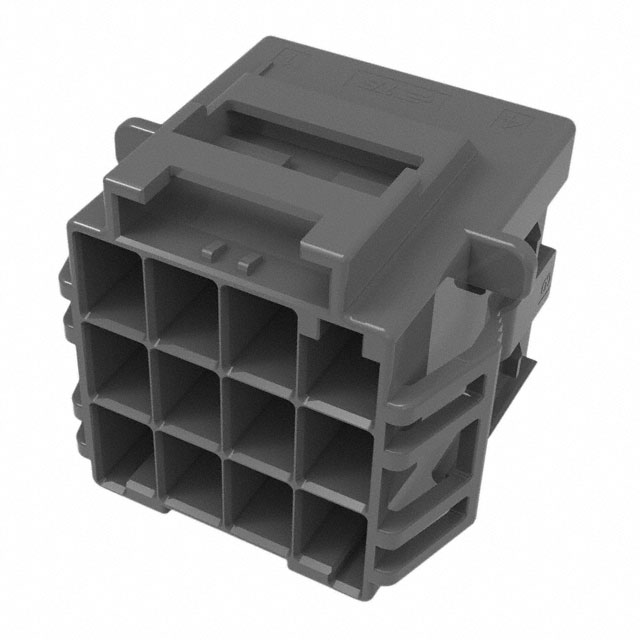

| Part Number | 5-2232356-4 | 5-2232357-4 | 5-2232356-7 | 5-2232358-4 | 5-2232359-4 | 5-2232356-3 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Obsolete | Active | Active |
| Connector Type | Receptacle | Plug | Receptacle | Receptacle | Receptacle | Receptacle |
| Contact Type | Tab | Female Blade Socket | Tab | Tab | Tab | Tab |
| Number of Positions | 12 | 12 | 15 | 4 | 8 | 9 |
| Pitch | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) |
| Number of Rows | 3 | 3 | 3 | 1 | 2 | 3 |
| Row Spacing | 0.319" (8.10mm) | 0.319" (8.10mm) | 0.319" (8.10mm) | - | 0.319" (8.10mm) | 0.319" (8.10mm) |
| Mounting Type | Panel Mount, Snap-In | Free Hanging (In-Line) | Panel Mount, Snap-In | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount, Snap-In |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Fastening Type | Latch Lock | Latch Holder | Latch Lock | Latch Lock | Latch Lock | Latch Lock |
| Color | Gray | Gray | Gray | Gray | Gray | Gray |
| Features | - | - | - | Glow Wire Compliant | Glow Wire Compliant | - |
