Please send RFQ , we will respond immediately.

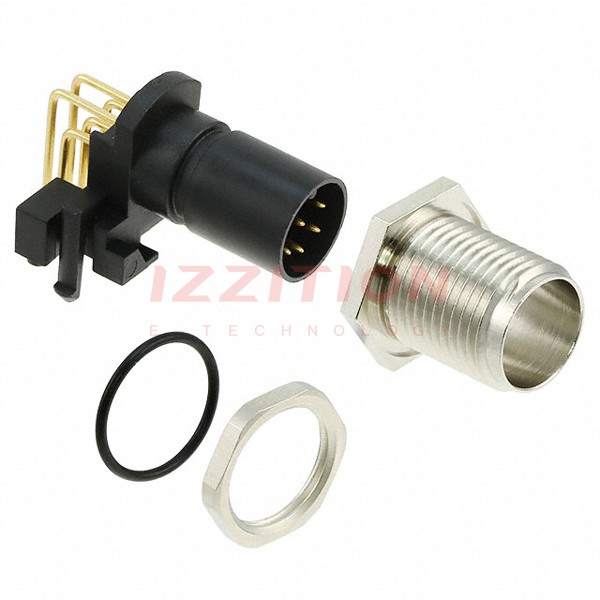

| Part Number | 5-2172075-2 | 5-2172079-2 | 5-2172078-2 | 5-2172077-2 | 5-2172070-2 | 5-2172071-2 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Active | Obsolete | Active | Active |
| Connector Type | Receptacle, Male Pins | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Female Sockets | Receptacle, Male Pins | Receptacle, Female Sockets |
| Number of Positions | 8 | 8 | 8 | 8 | 8 | 8 |
| Shell Size - Insert | M12-8 | M12-8 | M12-8 | M12-8 | M12-8 | M12-8 |
| Shell Size, MIL | - | - | - | - | - | - |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole | Panel Mount, Through Hole |
| Mounting Feature | Bulkhead | Bulkhead | Bulkhead | Bulkhead | Bulkhead | Bulkhead |
| Termination | Solder | Solder | Solder | Solder | Solder | Solder |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded |
| Orientation | A | A | A | A | A | A |
| Primary Material | Metal | Metal | Metal | Metal | Metal | Metal |
| Shell Material | Brass | Brass | Brass | Brass | Brass | Brass |
| Shell Finish | Nickel | Nickel | Nickel | Nickel | Nickel | Nickel |
| Contact Finish - Mating | Gold | Gold | Gold | Gold | Gold | Gold |
| Color | Silver | Silver | Silver | Silver | Silver | Silver |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Material Flammability Rating | - | - | - | - | - | - |
| Features | Board Guide, Board Lock | Board Guide, Board Lock | Board Guide, Board Lock | Board Guide, Board Lock | Board Guide, Board Lock | Board Guide, Board Lock |
| Shielding | - | Shielded | Shielded | - | - | - |
| Current Rating (Amps) | 2A | 2A | 2A | 2A | 2A | 2A |
| Voltage Rating | 60V | 60V | 60V | 60V | 60V | 60V |
| Cable Opening | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
