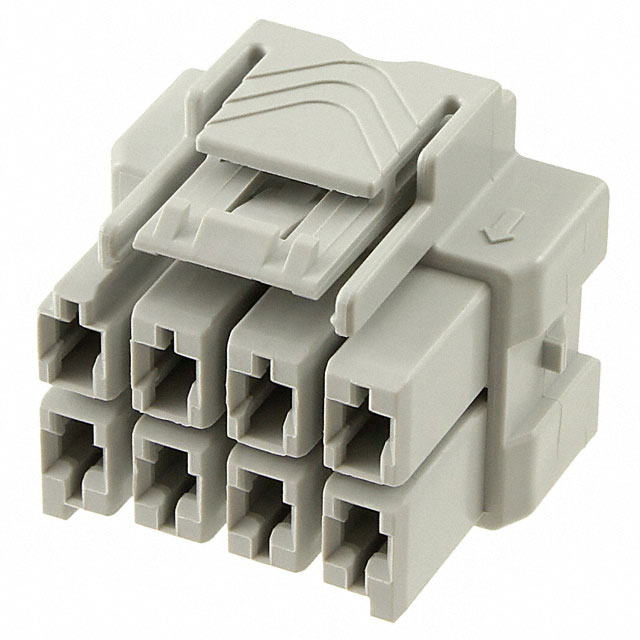

| Part Number | 5-1971776-4 | 5-1971876-4 | 5-1971776-6 | 5-1971776-5 | 5-1971771-4 | 5-1971772-4 | 5-1971773-4 | 5-1971774-4 | 5-1971775-4 | 5-1971776-3 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Obsolete | Active | Active | Obsolete | Active | Active |
| Connector Type | Plug | Plug | Plug | Plug | Receptacle | Receptacle | Plug | Receptacle | Receptacle | Plug |
| Contact Type | Female Blade Socket | Female Blade Socket | Female Blade Socket | Female Blade Socket | Tab | Tab | Female Blade Socket | Tab | Tab | Female Blade Socket |
| Number of Positions | 8 | 12 | 12 | 10 | 4 | 4 | 4 | 8 | 8 | 6 |
| Pitch | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) | 0.236" (6.00mm) |
| Number of Rows | 2 | 3 | 2 | 2 | 1 | 1 | 1 | 2 | 2 | 2 |
| Row Spacing | 0.319" (8.10mm) | 0.319" (8.10mm) | 0.319" (8.10mm) | 0.319" (8.10mm) | - | - | - | 0.319" (8.10mm) | 0.319" (8.10mm) | 0.319" (8.10mm) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount, Snap-In | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount, Snap-In | Free Hanging (In-Line) |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Fastening Type | Latch Holder | Latch Holder | Latch Holder | Latch Holder | Latch Lock | Latch Lock | Latch Holder | Latch Lock | Latch Lock | Latch Holder |
| Color | Gray | Gray | Gray | Gray | Gray | Gray | Gray | Gray | Gray | Gray |
| Features | - | - | - | - | - | Glow Wire Compliant | - | - | - | - |
