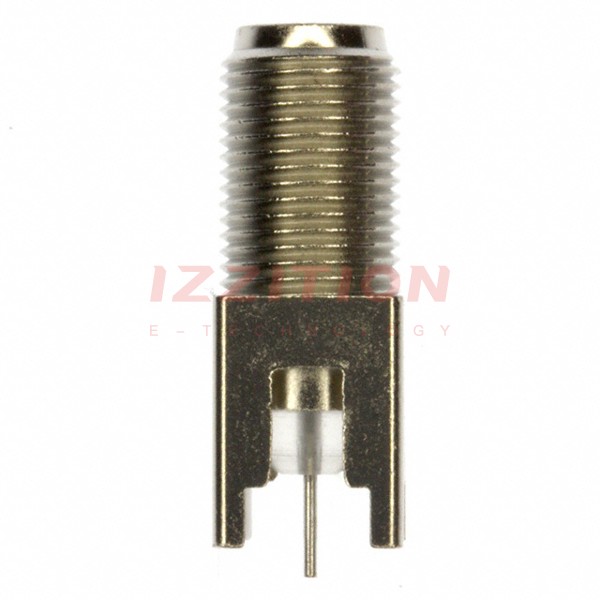

| Part Number | 5-1814825-1 | 5-1814826-1 | 5-1814805-1 | 5-1814815-1 | 5-1814820-1 | 5-1814821-1 | 5-1814822-1 | 5-1814823-1 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Last Time Buy | Active | Active |
| Connector Style | F Type | F Type | TNC | UHF | UHF, Mini | F Type | F Type | F Type |
| Connector Type | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Plug, Male Pin | Plug, Male Pin | Jack, Female Socket |
| Contact Termination | Solder | - | Solder | Solder Cup | Solder | - | - | Solder Tab |
| Shield Termination | Solder | Crimp | Solder | Solder | Solder | Crimp | Twist On | Solder |
| Impedance | 75Ohm | 75Ohm | 50Ohm | Non-Constant | Non-Constant | 75Ohm | 75Ohm | 75Ohm |
| Mounting Type | Through Hole | Panel Mount | Through Hole | Panel Mount | Through Hole, Right Angle | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount |
| Mounting Feature | - | Bulkhead - Front Side Nut | - | Bulkhead - Front Side Nut | - | - | - | Bulkhead - Rear Side Nut |
| Cable Group | - | RG-59B, 62A, 140, 210 | - | - | - | RG-59B, 62A, 140, 210 | RG-59B, 62A, 140, 210 | - |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded |
| Frequency - Max | 1 GHz | 2 GHz | 4 GHz | 500 MHz | 2 GHz | 1 GHz | 1 GHz | 1 GHz |
| Number of Ports | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Features | - | - | - | - | - | - | - | - |
| Housing Color | Silver | Silver | Silver | Silver | Silver | Silver | Silver | Silver |
| Ingress Protection | - | - | - | - | - | - | - | - |
| Center Contact Material | Phosphor Bronze | Brass | Phosphor Bronze | Brass | Phosphor Bronze | - | - | Phosphor Bronze |
