Please send RFQ , we will respond immediately.

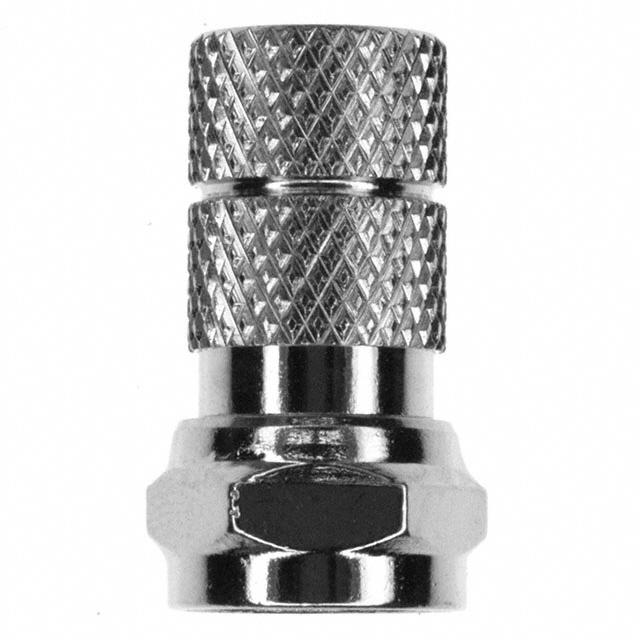

| Part Number | 5-1814822-1 | 5-1814823-1 | 5-1814822-5 | 5-1814822-7 | 5-1814826-1 | 5-1814822-3 | 5-1814832-1 | 5-1814825-1 | 5-1814820-1 | 5-1814821-1 |
|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Last Time Buy | Last Time Buy | Obsolete | Last Time Buy | Obsolete | Obsolete | Obsolete | Last Time Buy |
| Connector Style | F Type | F Type | F Type | F Type | F Type | F Type | SMA | F Type | UHF, Mini | F Type |
| Connector Type | Plug, Male Pin | Jack, Female Socket | Plug, Male Pin | Plug, Male Pin | Jack, Female Socket | Plug, Male Pin | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Plug, Male Pin |
| Contact Termination | - | Solder Tab | - | - | - | - | Solder | Solder | Solder | - |
| Shield Termination | Twist On | Solder | Twist On | Twist On | Crimp | Twist On | Solder | Solder | Solder | Crimp |
| Impedance | 75Ohm | 75Ohm | 75Ohm | 75Ohm | 75Ohm | 75Ohm | 50Ohm | 75Ohm | Non-Constant | 75Ohm |
| Mounting Type | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) | Through Hole | Through Hole | Through Hole, Right Angle | Free Hanging (In-Line) |
| Mounting Feature | - | Bulkhead - Rear Side Nut | - | - | Bulkhead - Front Side Nut | - | - | - | - | - |
| Cable Group | RG-59B, 62A, 140, 210 | - | CT100 | CT125 | RG-59B, 62A, 140, 210 | RG-6 | - | - | - | RG-59B, 62A, 140, 210 |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded |
| Frequency - Max | 1 GHz | 1 GHz | 1 GHz | 1 GHz | 2 GHz | 1 GHz | 3 GHz | 1 GHz | 2 GHz | 1 GHz |
| Number of Ports | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Features | - | - | - | - | - | - | - | - | - | - |
| Housing Color | Silver | Silver | Silver | Silver | Silver | Silver | Gold | Silver | Silver | Silver |
| Ingress Protection | - | - | - | - | - | - | - | - | - | - |
| Center Contact Material | - | Phosphor Bronze | - | - | Brass | - | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | - |
