Please send RFQ , we will respond immediately.

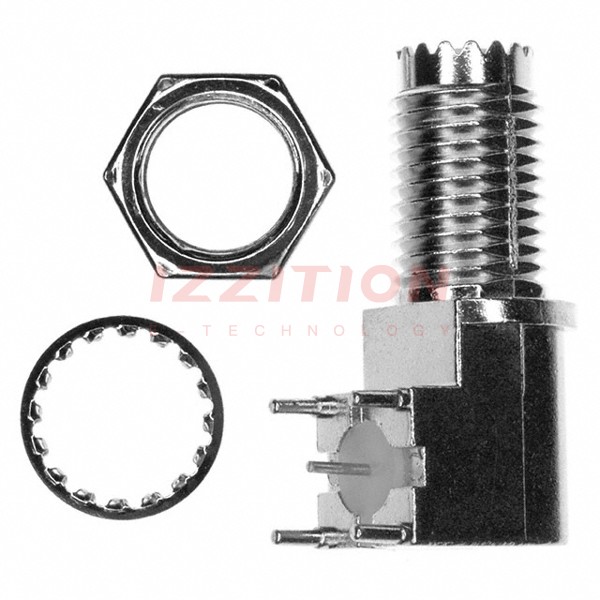

| Part Number | 5-1814820-1 | 5-1814823-1 | 5-1814826-1 | 5-1814822-1 | 5-1814821-1 | 5-1814825-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Obsolete | Active | Last Time Buy | Obsolete |
| Connector Style | UHF, Mini | F Type | F Type | F Type | F Type | F Type |
| Connector Type | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Plug, Male Pin | Plug, Male Pin | Jack, Female Socket |
| Contact Termination | Solder | Solder Tab | - | - | - | Solder |
| Shield Termination | Solder | Solder | Crimp | Twist On | Crimp | Solder |
| Impedance | Non-Constant | 75Ohm | 75Ohm | 75Ohm | 75Ohm | 75Ohm |
| Mounting Type | Through Hole, Right Angle | Panel Mount | Panel Mount | Free Hanging (In-Line) | Free Hanging (In-Line) | Through Hole |
| Mounting Feature | - | Bulkhead - Rear Side Nut | Bulkhead - Front Side Nut | - | - | - |
| Cable Group | - | - | RG-59B, 62A, 140, 210 | RG-59B, 62A, 140, 210 | RG-59B, 62A, 140, 210 | - |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded |
| Frequency - Max | 2 GHz | 1 GHz | 2 GHz | 1 GHz | 1 GHz | 1 GHz |
| Number of Ports | 1 | 1 | 1 | 1 | 1 | 1 |
| Features | - | - | - | - | - | - |
| Housing Color | Silver | Silver | Silver | Silver | Silver | Silver |
| Ingress Protection | - | - | - | - | - | - |
| Center Contact Material | Phosphor Bronze | Phosphor Bronze | Brass | - | - | Phosphor Bronze |
