Please send RFQ , we will respond immediately.

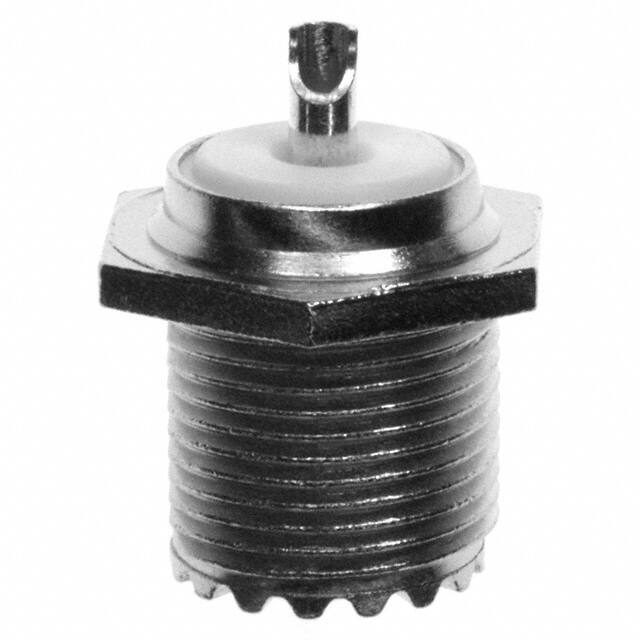

| Part Number | 5-1814815-1 | 5-1814819-1 | 5-1814816-1 | 5-1814818-1 | 5-1814825-1 | 5-1814805-1 | 5-1814814-1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Last Time Buy | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Style | UHF | UHF, Mini | UHF | UHF, Mini | F Type | TNC | UHF |
| Connector Type | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Plug, Male Pin | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket |
| Contact Termination | Solder Cup | Crimp | Solder Cup | Crimp | Solder | Solder | Solder Cup |
| Shield Termination | Solder | Crimp | Solder | Crimp | Solder | Solder | Solder |
| Impedance | Non-Constant | Non-Constant | Non-Constant | Non-Constant | 75Ohm | 50Ohm | Non-Constant |
| Mounting Type | Panel Mount | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) | Through Hole | Through Hole | Panel Mount |
| Mounting Feature | Bulkhead - Front Side Nut | - | Flange | - | - | - | Bulkhead - Rear Side Nut |
| Cable Group | - | RG-58C, 141A | - | RG-58C, 141A | - | - | - |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded | Threaded |
| Frequency - Max | 500 MHz | 2 GHz | 500 MHz | 2 GHz | 1 GHz | 4 GHz | 500 MHz |
| Number of Ports | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Features | - | - | - | - | - | - | - |
| Housing Color | Silver | Silver | Silver | Silver | Silver | Silver | Silver |
| Ingress Protection | - | - | - | - | - | - | - |
| Center Contact Material | Brass | Brass | Brass | Brass | Phosphor Bronze | Phosphor Bronze | Brass |
