Please send RFQ , we will respond immediately.

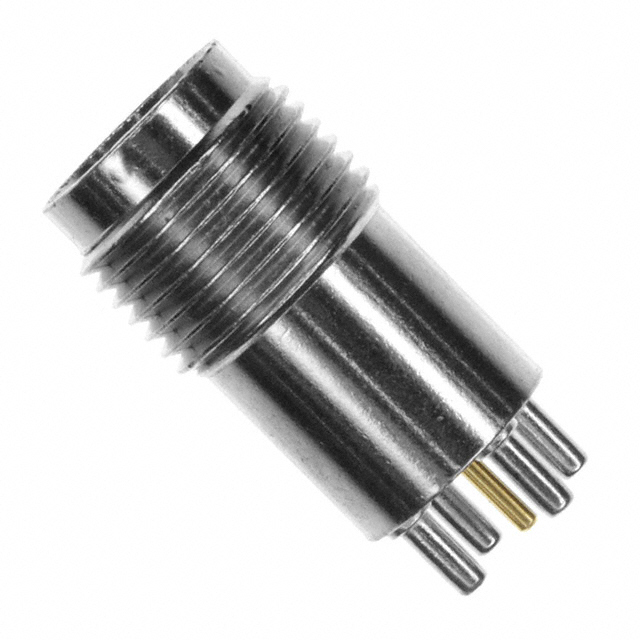

| Part Number | 5-1814805-1 | 5-1814807-1 | 5-1814815-1 | 5-1814825-1 | 5-1814804-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Style | TNC | TNC | UHF | F Type | TNC |
| Connector Type | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket |
| Contact Termination | Solder | Solder | Solder Cup | Solder | Solder Cup |
| Shield Termination | Solder | Solder | Solder | Solder | Solder Tag |
| Impedance | 50Ohm | 50Ohm | Non-Constant | 75Ohm | 50Ohm |
| Mounting Type | Through Hole | Panel Mount, Through Hole, Right Angle | Panel Mount | Through Hole | Panel Mount |
| Mounting Feature | - | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut | - | Bulkhead - Rear Side Nut |
| Cable Group | - | - | - | - | - |
| Fastening Type | Threaded | Threaded | Threaded | Threaded | Threaded |
| Frequency - Max | 4 GHz | 4 GHz | 500 MHz | 1 GHz | 4 GHz |
| Number of Ports | 1 | 1 | 1 | 1 | 1 |
| Features | - | Board Guide, Isolated | - | - | - |
| Housing Color | Silver | Silver, White | Silver | Silver | Silver |
| Ingress Protection | - | - | - | - | - |
| Center Contact Material | Phosphor Bronze | Phosphor Bronze | Brass | Phosphor Bronze | Phosphor Bronze |
