Please send RFQ , we will respond immediately.

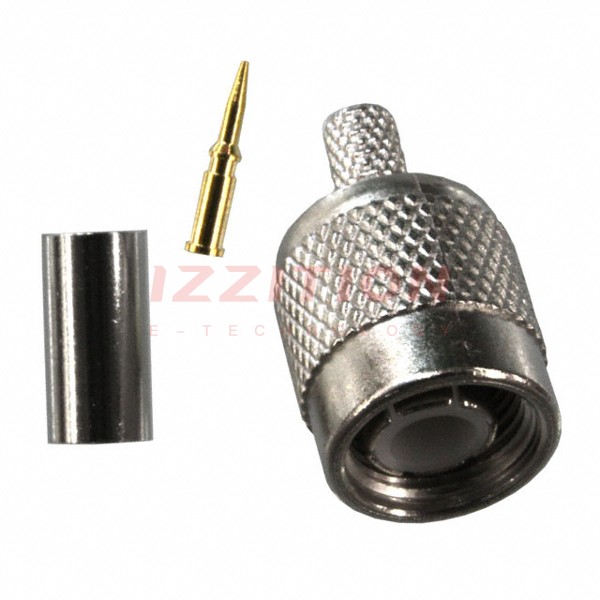

| Part Number | 5-1814800-3 | 5-1814804-3 | 5-1814801-3 | 5-1814802-3 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Style | TNC | TNC | TNC | TNC |
| Connector Type | Plug, Male Pin | Jack, Female Socket | Plug, Male Pin | Jack, Female Socket |
| Contact Termination | Crimp | Solder Cup | Crimp | Crimp |
| Shield Termination | Crimp | Solder Tag | Crimp | Crimp |
| Impedance | 50Ohm | 75Ohm | 75Ohm | 50Ohm |
| Mounting Type | Free Hanging (In-Line) | Panel Mount | Free Hanging (In-Line) | Panel Mount |
| Mounting Feature | - | Bulkhead - Rear Side Nut | - | Bulkhead - Front Side Nut |
| Cable Group | RG-58C, 141A, Belden 9907 | - | RG-59B, 62A, 140, 210, KX6A, 25, 52, 53, URM90 | RG-58C, 141A, Belden 9907 |
| Fastening Type | Threaded | Threaded | Threaded | Threaded |
| Frequency - Max | 4 GHz | 4 GHz | 2 GHz | 4 GHz |
| Number of Ports | 1 | 1 | 1 | 1 |
| Features | - | - | - | - |
| Housing Color | Silver | Silver | Silver | Silver |
| Ingress Protection | - | - | - | - |
| Center Contact Material | Brass | Phosphor Bronze | Brass | Phosphor Bronze |
