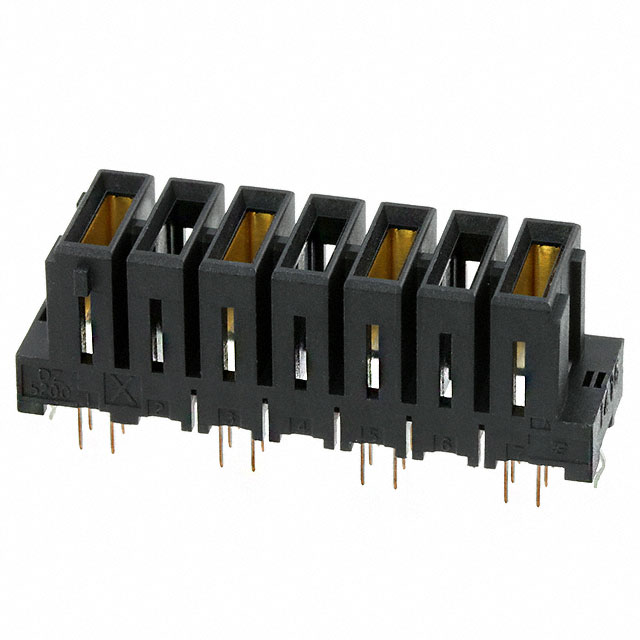

| Part Number | 5-1747147-4 | 5-1747147-3 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Connector Type | Receptacle | Receptacle |
| Contact Type | Female Blade Socket | Female Blade Socket |
| Style | Board to Board | Board to Board |
| Number of Positions | 4 | 3 |
| Number of Positions Loaded | All | All |
| Pitch - Mating | 0.400" (10.16mm) | 0.400" (10.16mm) |
| Number of Rows | 1 | 1 |
| Row Spacing - Mating | - | - |
| Mounting Type | Through Hole | Through Hole |
| Termination | Solder | Solder |
| Fastening Type | Push-Pull | Push-Pull |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 8.00µin (0.203µm) | 8.00µin (0.203µm) |
| Insulation Color | Black | Black |
| Insulation Height | 0.551" (14.00mm) | 0.551" (14.00mm) |
| Contact Length - Post | 0.150" (3.81mm) | 0.150" (3.81mm) |
| Operating Temperature | -55°C ~ 105°C | -55°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Contact Finish - Post | Tin | Tin |
| Mated Stacking Heights | - | - |
| Ingress Protection | - | - |
| Features | Board Guide, Board Lock | Board Guide, Board Lock |
| Current Rating (Amps) | 30A | 30A |
| Voltage Rating | 600V | 600V |
