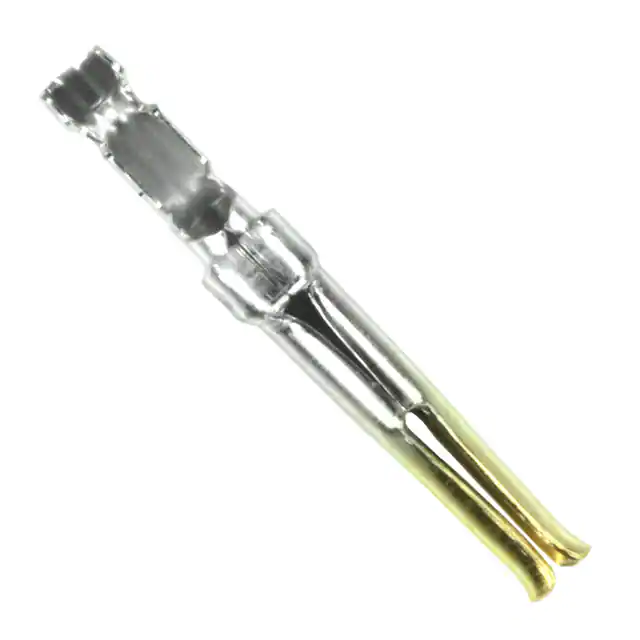

| Part Number | 5-166052-1 | 5-166054-1 | 5-166053-1 | 5-166051-1 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Type | Signal | Signal | Signal | Signal |
| Contact Type | Female Socket | Male Pin | Male Pin | Female Socket |
| Contact Form | Machined | Stamped | Stamped | Stamped |
| Wire Gauge | 24-28 AWG | 24-28 AWG | 20-24 AWG | 20-24 AWG |
| Contact Termination | Crimp | Crimp | Crimp | Crimp |
| Contact Material | Phosphor Bronze | Brass | Brass | Phosphor Bronze |
| Contact Finish | Gold | Gold | Gold | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) | 30.0µin (0.76µm) |
| Termination Finish | Tin | Tin | Tin | Tin |
| Termination Finish Thickness | - | - | - | - |
| Contact Size | 20 DF | 20 DF | 20 DF | 20 DF |
| Features | Insulation Support | Insulation Support | Insulation Support | Insulation Support |
