Please send RFQ , we will respond immediately.

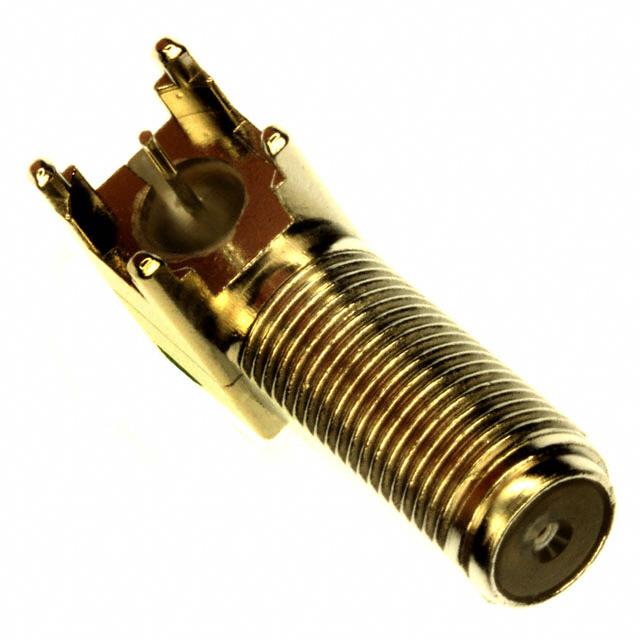

| Part Number | 5-1634540-1 | 5-1634500-1 | 5-1634540-0 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete |
| Connector Style | F Type | BNC | F Type |
| Connector Type | Jack, Female Socket | Plug, Male Pin | Jack, Female Socket |
| Contact Termination | Solder | Crimp | Solder |
| Shield Termination | Solder | Crimp | Solder |
| Impedance | 75Ohm | 50Ohm | 75Ohm |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Free Hanging (In-Line) | Panel Mount, Through Hole, Right Angle |
| Mounting Feature | Bulkhead - Front Side Nut | - | Bulkhead - Front Side Nut |
| Cable Group | - | RG-174A, 188A, 316, KX3B, KX22A, URM-95 | - |
| Fastening Type | Threaded | Bayonet Lock | Threaded |
| Frequency - Max | 1 GHz | 4 GHz | 1 GHz |
| Number of Ports | 1 | 1 | 1 |
| Features | - | - | - |
| Housing Color | Silver | Silver | Silver |
| Ingress Protection | - | - | - |
| Center Contact Material | Phosphor Bronze | Brass | Phosphor Bronze |
