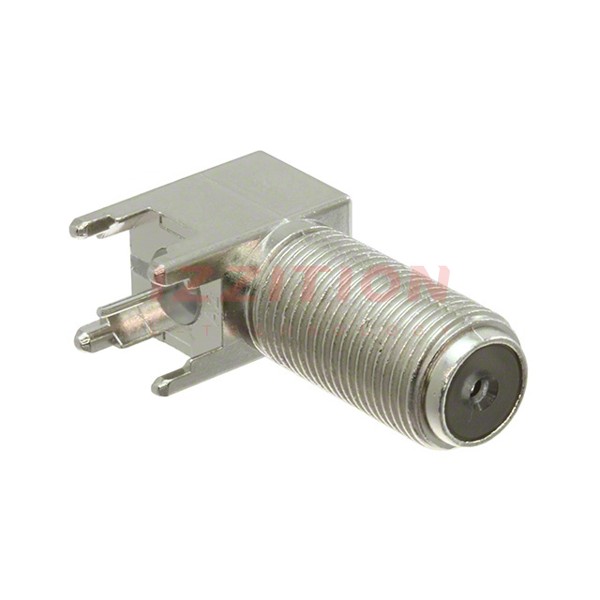

| Part Number | 5-1634540-0 | 5-1634540-1 | 5-1634500-0 |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete |
| Connector Style | F Type | F Type | BNC |
| Connector Type | Jack, Female Socket | Jack, Female Socket | Plug, Male Pin |
| Contact Termination | Solder | Solder | Crimp |
| Shield Termination | Solder | Solder | Crimp |
| Impedance | 75Ohm | 75Ohm | 50Ohm |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Panel Mount, Through Hole, Right Angle | Free Hanging (In-Line) |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut | - |
| Cable Group | - | - | RG-174A, 188A, 316 |
| Fastening Type | Threaded | Threaded | Bayonet Lock |
| Frequency - Max | 1 GHz | 1 GHz | 4 GHz |
| Number of Ports | 1 | 1 | 1 |
| Features | - | - | - |
| Housing Color | Silver | Silver | Silver |
| Ingress Protection | - | - | - |
| Center Contact Material | Phosphor Bronze | Phosphor Bronze | Brass |
