Please send RFQ , we will respond immediately.

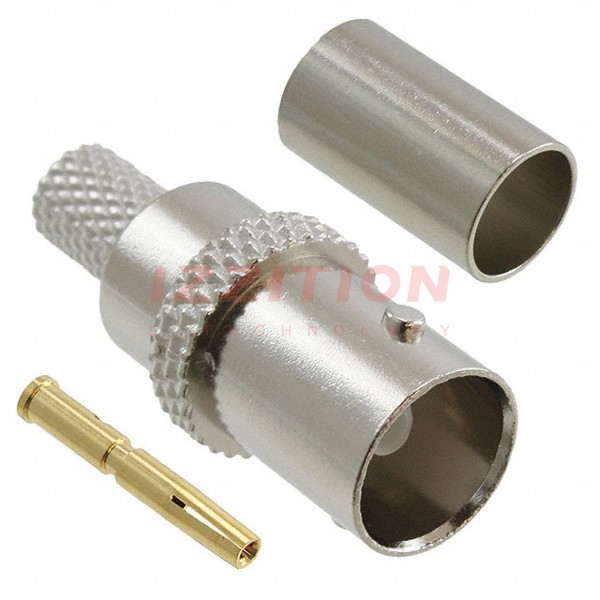

| Part Number | 5-1634514-1 | 5-1634516-1 | 5-1634504-1 | 5-1634513-1 | 5-1634514-0 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Connector Style | BNC | BNC | BNC | BNC | BNC |
| Connector Type | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket |
| Contact Termination | Crimp | Crimp | Solder Cup | Solder | Crimp |
| Shield Termination | Crimp | Crimp | Solder | Solder | Crimp |
| Impedance | 75Ohm | 50Ohm | 50Ohm | 50Ohm | 75Ohm |
| Mounting Type | Free Hanging (In-Line) | Panel Mount | Panel Mount | Through Hole, Right Angle | Free Hanging (In-Line) |
| Mounting Feature | - | Bulkhead - Front Side Nut | Bulkhead - Rear Side Nut | - | - |
| Cable Group | RG-59B, 62A, 140, 210 | RG-58C, 141A, Belden 9907 | - | - | RG-59B, 62A, 140, 210 |
| Fastening Type | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock |
| Frequency - Max | 4 GHz | 4 GHz | 4 GHz | 2 GHz | 4 GHz |
| Number of Ports | 1 | 1 | 1 | 1 | 1 |
| Features | - | - | Isolated | - | - |
| Housing Color | Silver | Silver | Silver, White | Silver | Silver |
| Ingress Protection | - | - | - | - | - |
| Center Contact Material | Phosphor Bronze | Brass | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
