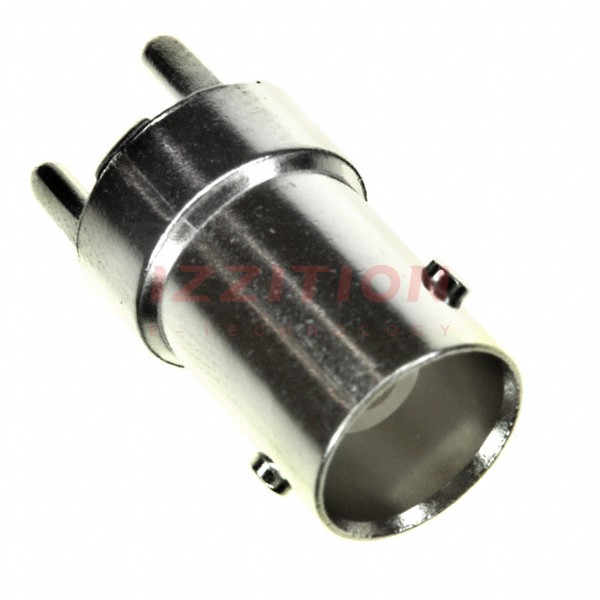

| Part Number | 5-1634506-1 | 5-1634516-1 | 5-1634506-2 | 5-1634500-1 | 5-1634503-1 | 5-1634504-1 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Style | BNC | BNC | BNC | BNC | BNC | BNC |
| Connector Type | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Plug, Male Pin | Jack, Female Socket | Jack, Female Socket |
| Contact Termination | Solder | Crimp | Solder | Crimp | Solder | Solder Cup |
| Shield Termination | Solder | Crimp | Solder | Crimp | Solder | Solder |
| Impedance | 50Ohm | 50Ohm | 75Ohm | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Through Hole | Panel Mount | Through Hole | Free Hanging (In-Line) | Through Hole | Panel Mount |
| Mounting Feature | - | Bulkhead - Front Side Nut | - | - | - | Bulkhead - Rear Side Nut |
| Cable Group | - | RG-58C, 141A, Belden 9907 | - | RG-174A, 188A, 316, KX3B, KX22A, URM-95 | - | - |
| Fastening Type | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock |
| Frequency - Max | 4 GHz | 4 GHz | 2 GHz | 4 GHz | 4 GHz | 4 GHz |
| Number of Ports | 1 | 1 | 1 | 1 | 1 | 1 |
| Features | - | - | - | - | - | Isolated |
| Housing Color | Silver | Silver | Silver | Silver | Silver | Silver, White |
| Ingress Protection | - | - | - | - | - | - |
| Center Contact Material | Phosphor Bronze | Brass | Phosphor Bronze | Brass | Phosphor Bronze | Phosphor Bronze |
