Please send RFQ , we will respond immediately.

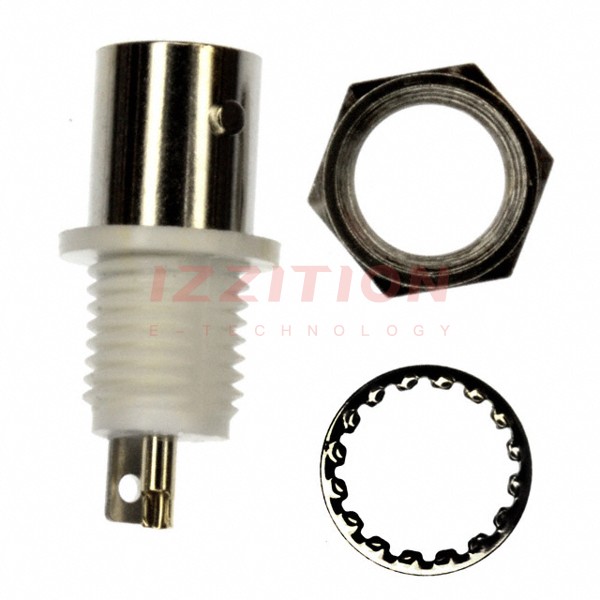

| Part Number | 5-1634504-2 | 5-1634506-2 | 5-1634500-2 | 5-1634502-2 | 5-1634504-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Style | BNC | BNC | BNC | BNC | BNC |
| Connector Type | Jack, Female Socket | Jack, Female Socket | Plug, Male Pin | Plug, Male Pin | Jack, Female Socket |
| Contact Termination | Solder Cup | Solder | Crimp | Crimp | Solder Cup |
| Shield Termination | Solder | Solder | Crimp | Crimp | Solder |
| Impedance | 75Ohm | 75Ohm | 50Ohm | 75Ohm | 50Ohm |
| Mounting Type | Panel Mount | Through Hole | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount |
| Mounting Feature | Bulkhead - Rear Side Nut | - | - | - | Bulkhead - Rear Side Nut |
| Cable Group | - | - | RG-58C, 141A, 303, Belden 9907, KX15, URM43, 76 | RG-59B, 62A, 140, 210 | - |
| Fastening Type | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock |
| Frequency - Max | 2 GHz | 2 GHz | 4 GHz | 2 GHz | 4 GHz |
| Number of Ports | 1 | 1 | 1 | 1 | 1 |
| Features | Isolated | - | - | - | Isolated |
| Housing Color | Silver, White | Silver | Silver | Silver | Silver, White |
| Ingress Protection | - | - | - | - | - |
| Center Contact Material | Phosphor Bronze | Phosphor Bronze | Brass | Brass | Phosphor Bronze |
