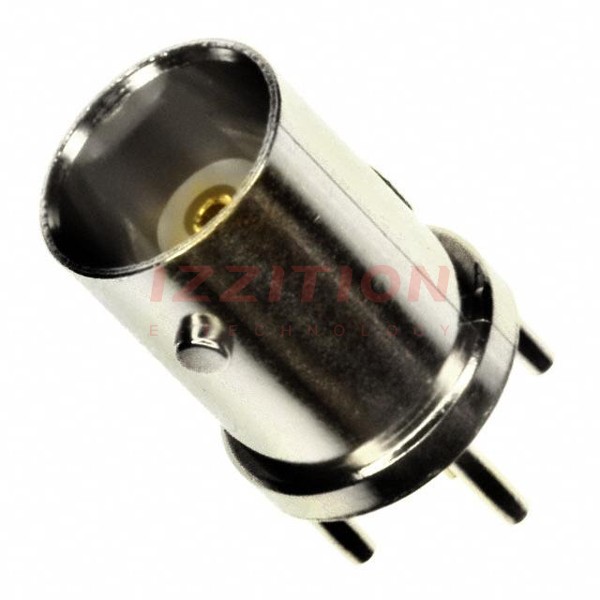

| Part Number | 5-1634503-1 | 5-1634503-3 | 5-1634523-1 | 5-1634506-1 | 5-1634504-1 | 5-1634513-1 | 5-1634500-1 |
|---|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Style | BNC | BNC | BNC | BNC | BNC | BNC | BNC |
| Connector Type | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Jack, Female Socket | Plug, Male Pin |
| Contact Termination | Solder | Solder | Solder Cup | Solder | Solder Cup | Solder | Crimp |
| Shield Termination | Solder | Solder | Solder Tag | Solder | Solder | Solder | Crimp |
| Impedance | 50Ohm | 75Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Through Hole | Through Hole | Panel Mount | Through Hole | Panel Mount | Through Hole, Right Angle | Free Hanging (In-Line) |
| Mounting Feature | - | - | Bulkhead - Rear Side Nut | - | Bulkhead - Rear Side Nut | - | - |
| Cable Group | - | - | - | - | - | - | RG-174A, 188A, 316, KX3B, KX22A, URM-95 |
| Fastening Type | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock |
| Frequency - Max | 4 GHz | 2 GHz | 4 GHz | 4 GHz | 4 GHz | 2 GHz | 4 GHz |
| Number of Ports | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Features | - | - | - | - | Isolated | - | - |
| Housing Color | Silver | Silver | Silver | Silver | Silver, White | Silver | Silver |
| Ingress Protection | - | - | - | - | - | - | - |
| Center Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Brass |
