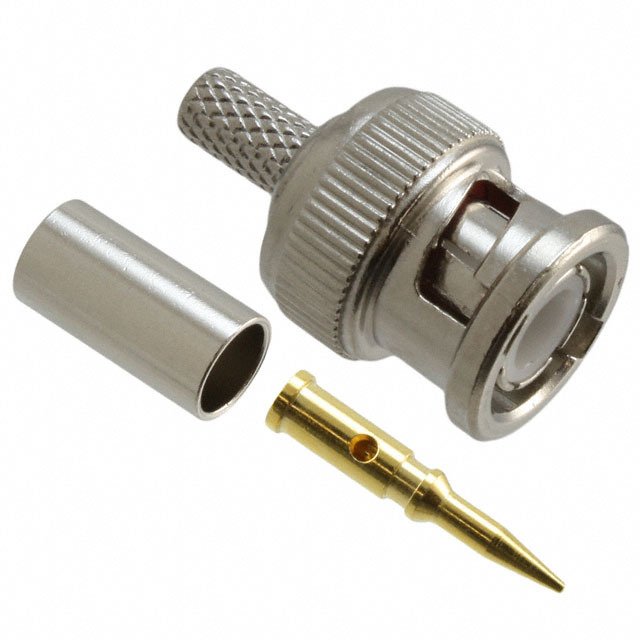

| Part Number | 5-1634500-3 | 5-1634503-3 | 5-1634502-3 | 5-1634500-0 | 5-1634500-1 | 5-1634500-2 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Style | BNC | BNC | BNC | BNC | BNC | BNC |
| Connector Type | Plug, Male Pin | Jack, Female Socket | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin |
| Contact Termination | Crimp | Solder | Crimp | Crimp | Crimp | Crimp |
| Shield Termination | Crimp | Solder | Crimp | Crimp | Crimp | Crimp |
| Impedance | 50Ohm | 75Ohm | 75Ohm | 50Ohm | 50Ohm | 50Ohm |
| Mounting Type | Free Hanging (In-Line) | Through Hole | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Mounting Feature | - | - | - | - | - | - |
| Cable Group | RG-58C, 141A, Belden 9907 | - | RG-59B, 62A, 140, 210 | RG-174A, 188A, 316 | RG-174A, 188A, 316, KX3B, KX22A, URM-95 | RG-58C, 141A, 303, Belden 9907, KX15, URM43, 76 |
| Fastening Type | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock |
| Frequency - Max | 4 GHz | 2 GHz | 2 GHz | 4 GHz | 4 GHz | 4 GHz |
| Number of Ports | 1 | 1 | 1 | 1 | 1 | 1 |
| Features | - | - | - | - | - | - |
| Housing Color | Silver | Silver | Silver | Silver | Silver | Silver |
| Ingress Protection | - | - | - | - | - | - |
| Center Contact Material | Brass | Phosphor Bronze | Brass | Brass | Brass | Brass |
