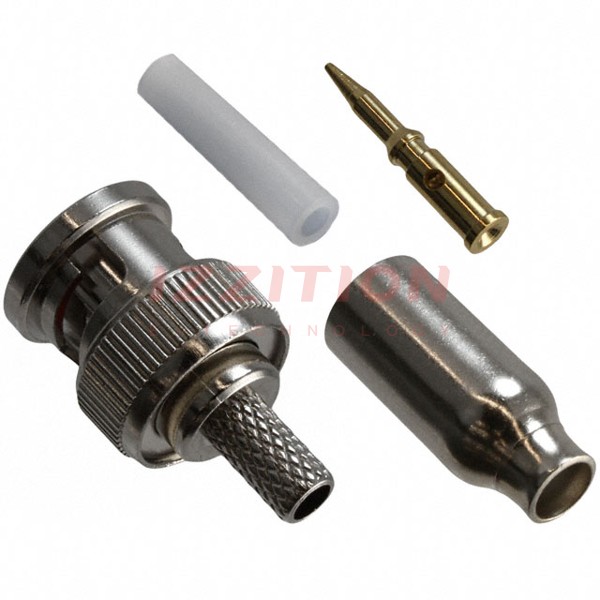

| Part Number | 5-1634500-0 | 5-1634500-3 | 5-1634500-1 | 5-1634500-2 | 5-1634540-0 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Connector Style | BNC | BNC | BNC | BNC | F Type |
| Connector Type | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin | Plug, Male Pin | Jack, Female Socket |
| Contact Termination | Crimp | Crimp | Crimp | Crimp | Solder |
| Shield Termination | Crimp | Crimp | Crimp | Crimp | Solder |
| Impedance | 50Ohm | 50Ohm | 50Ohm | 50Ohm | 75Ohm |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Panel Mount, Through Hole, Right Angle |
| Mounting Feature | - | - | - | - | Bulkhead - Front Side Nut |
| Cable Group | RG-174A, 188A, 316 | RG-58C, 141A, Belden 9907 | RG-174A, 188A, 316, KX3B, KX22A, URM-95 | RG-58C, 141A, 303, Belden 9907, KX15, URM43, 76 | - |
| Fastening Type | Bayonet Lock | Bayonet Lock | Bayonet Lock | Bayonet Lock | Threaded |
| Frequency - Max | 4 GHz | 4 GHz | 4 GHz | 4 GHz | 1 GHz |
| Number of Ports | 1 | 1 | 1 | 1 | 1 |
| Features | - | - | - | - | - |
| Housing Color | Silver | Silver | Silver | Silver | Silver |
| Ingress Protection | - | - | - | - | - |
| Center Contact Material | Brass | Brass | Brass | Brass | Phosphor Bronze |
