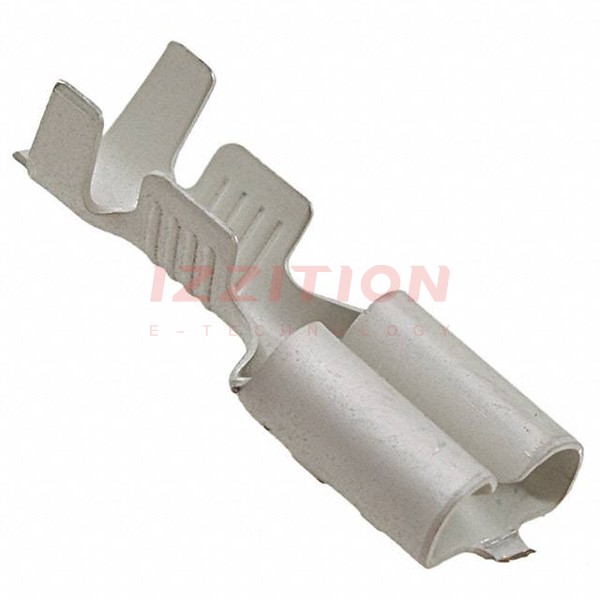

| Part Number | 5-160446-8 | 5-160446-1 | 5-160446-2 | 5-160446-4 | 5-160446-5 | 5-160446-6 |
|---|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Terminal Type | Standard | Standard | Standard | Standard | Standard | Standard |
| Gender | Female | Female | Female | Female | Female | Female |
| Tab Width | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.305" (7.75mm) | 0.305" (7.75mm) | 0.305" (7.75mm) | 0.305" (7.75mm) | 0.305" (7.75mm) | 0.305" (7.75mm) |
| Length - Overall | 0.756" (19.20mm) | 0.756" (19.20mm) | 0.756" (19.20mm) | 0.756" (19.20mm) | 0.756" (19.20mm) | 0.756" (19.20mm) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 13.5-17 AWG | 13.5-17 AWG | 13.5-17 AWG | 13.5-17 AWG | 13.5-17 AWG | 13.5-17 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - | - | - | - |
| Color | - | - | - | - | - | - |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Brass | Brass | Brass |
| Contact Finish | Silver | - | Tin | - | Tin | Silver |
