Please send RFQ , we will respond immediately.

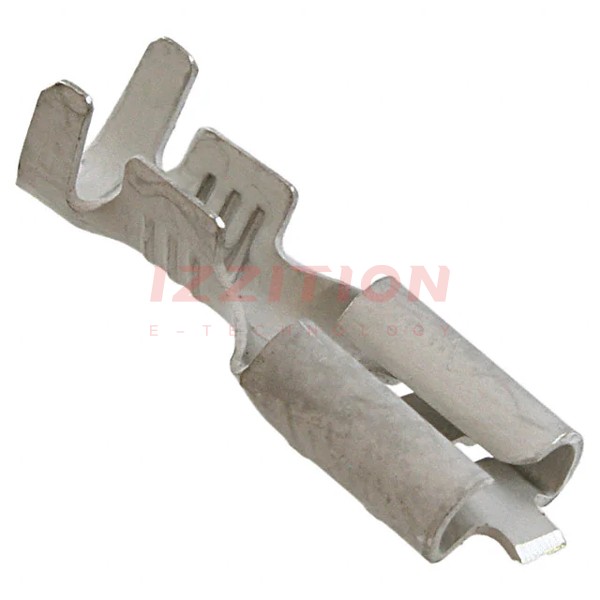

| Part Number | 5-160430-6 | 5-160430-7 | 5-160433-6 | 5-160430-4 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Obsolete |
| Terminal Type | Standard | Standard | Standard | Standard |
| Gender | Female | Female | Female | Female |
| Tab Width | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.187" (4.75mm) | 0.187" (4.75mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.020" (0.51mm) | 0.032" (0.81mm) |
| Tab Length | 0.248" (6.30mm) | 0.248" (6.30mm) | 0.248" (6.30mm) | 0.248" (6.30mm) |
| Length - Overall | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) | 0.591" (15.00mm) |
| Termination | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 15-20 AWG | 15.5-20 AWG | 15-20 AWG | 15.5-20 AWG |
| Insulation | Non-Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - | - |
| Color | - | - | - | - |
| Contact Material | Phosphor Bronze | Brass | Brass | Steel |
| Contact Finish | Tin | Tin | Tin | Nickel |
