Please send RFQ , we will respond immediately.

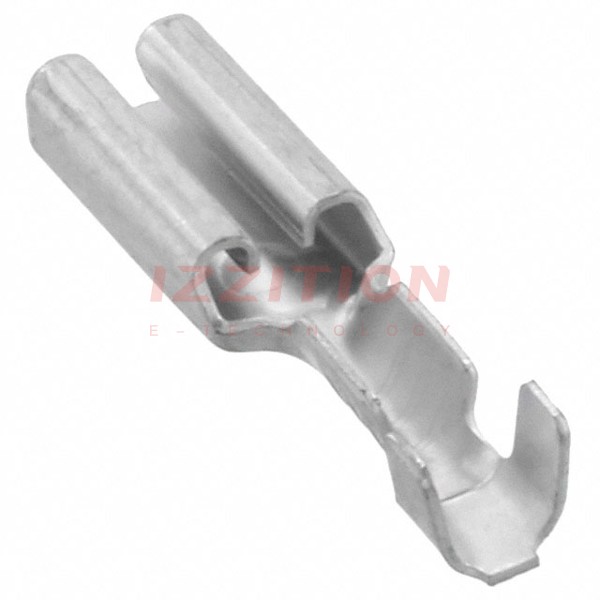

| Part Number | 5-160321-2 | 5-160521-2 |
|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active |
| Terminal Type | Standard | Standard |
| Gender | Female | Female |
| Tab Width | 0.110" (2.79mm) | 0.375" (9.53mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.047" (1.19mm) |
| Tab Length | 0.210" (5.33mm) | 0.469" (11.90mm) |
| Length - Overall | 0.551" (14.00mm) | 1.031" (26.19mm) |
| Termination | Crimp | Crimp |
| Wire Gauge | 20-22 AWG | 10-11 AWG |
| Insulation | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - |
| Color | - | - |
| Contact Material | Brass | Brass |
| Contact Finish | Tin | Tin |
