Please send RFQ , we will respond immediately.

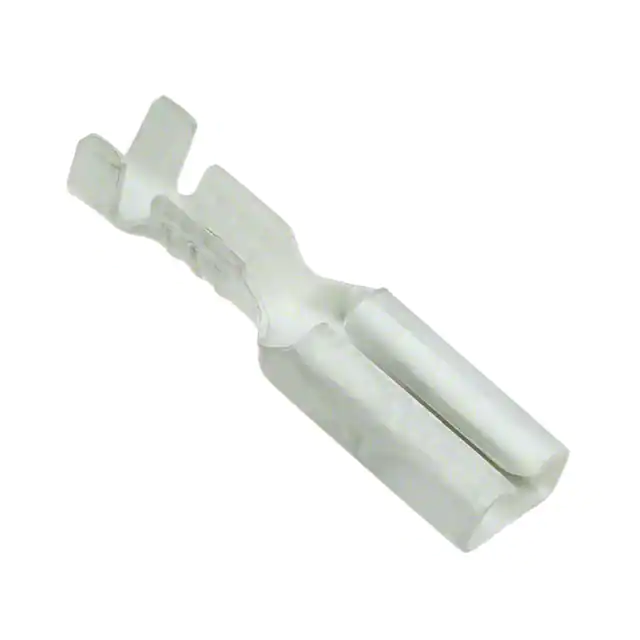

| Part Number | 5-160303-2 | 5-160313-2 | 5-160303-3 | 5-160303-6 | 5-160303-1 |
|---|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Obsolete | Active |
| Terminal Type | Standard | Standard | Standard | Standard | Standard |
| Gender | Female | Female | Female | Female | Female |
| Tab Width | 0.110" (2.79mm) | 0.250" (6.35mm) | 0.110" (2.79mm) | 0.110" (2.79mm) | 0.110" (2.79mm) |
| Tab Thickness | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) | 0.032" (0.81mm) |
| Tab Length | 0.250" (6.35mm) | 0.303" (7.70mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Length - Overall | 0.551" (14.00mm) | 0.913" (23.20mm) | 0.551" (14.00mm) | 0.551" (14.00mm) | 0.551" (14.00mm) |
| Termination | Crimp | Crimp | Crimp | Crimp | Crimp |
| Wire Gauge | 20-22 AWG | 13-17 AWG | 20-22 AWG | 20-22 AWG | 20-22 AWG |
| Insulation | Non-Insulated | Non-Mating End Insulated | Non-Insulated | Non-Insulated | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Features | - | - | - | - | - |
| Color | - | Blue | - | - | - |
| Contact Material | Brass | Brass | Brass | Phosphor Bronze | Brass |
| Contact Finish | Tin | Tin | Silver | Tin | - |
