5-1571911-1
  • Share:

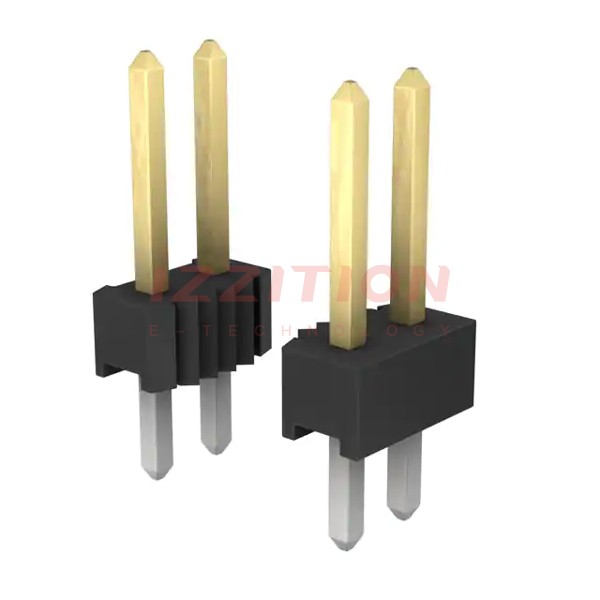

TE Connectivity AMP Connectors 5-1571911-1

Manufacturer No:
5-1571911-1
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
5-1571911-1 Datasheet
ECAD Model:
-
Description:
CONN HEADER VERT 20POS 2.54MM
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:20
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:19
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.230" (5.84mm)
Contact Length - Post:-
Overall Contact Length:-
Insulation Height:-
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Phosphor Bronze
Insulation Material:Liquid Crystal Polymer (LCP)
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:-
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
0 Remaining View Similar

In Stock

$1.42
255

Please send RFQ , we will respond immediately.
