5-1571551-2
  • Share:

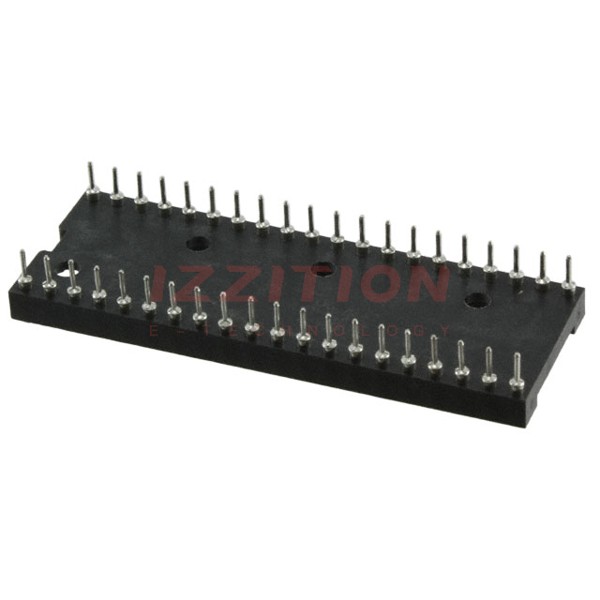

TE Connectivity AMP Connectors 5-1571551-2

Manufacturer No:
5-1571551-2
Manufacturer:
TE Connectivity AMP Connectors
Package:
Bulk
Datasheet:
5-1571551-2 Datasheet
ECAD Model:
-
Description:
CONN IC DIP SOCKET 40POS GOLD
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Type:DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid):40 (2 x 20)
Pitch - Mating:0.100" (2.54mm)
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:25.0µin (0.63µm)
Contact Material - Mating:Beryllium Copper
Mounting Type:Through Hole
Features:Closed Frame
Termination:Solder
Pitch - Post:0.100" (2.54mm)
Contact Finish - Post:Gold
Contact Finish Thickness - Post:25.0µin (0.63µm)
Contact Material - Post:Nickel
Housing Material:Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature:-55°C ~ 125°C
0 Remaining View Similar

In Stock

$2.06
229

Please send RFQ , we will respond immediately.

Similar Products

Part Number 5-1571551-2 5-1571552-2   5-1571551-0
Manufacturer TE Connectivity AMP Connectors TE Connectivity AMP Connectors TE Connectivity AMP Connectors
Product Status Active Obsolete Active
Type DIP, 0.6" (15.24mm) Row Spacing DIP, 0.6" (15.24mm) Row Spacing DIP, 0.6" (15.24mm) Row Spacing
Number of Positions or Pins (Grid) 40 (2 x 20) 40 (2 x 20) 32 (2 x 16)
Pitch - Mating 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm)
Contact Finish - Mating Gold Gold Gold
Contact Finish Thickness - Mating 25.0µin (0.63µm) 20.0µin (0.51µm) 25.0µin (0.63µm)
Contact Material - Mating Beryllium Copper Copper Alloy Beryllium Copper
Mounting Type Through Hole Through Hole Through Hole
Features Closed Frame Open Frame Closed Frame
Termination Solder Solder Solder
Pitch - Post 0.100" (2.54mm) 0.100" (2.54mm) 0.100" (2.54mm)
Contact Finish - Post Gold Tin-Lead Gold
Contact Finish Thickness - Post 25.0µin (0.63µm) - 25.0µin (0.63µm)
Contact Material - Post Nickel Copper Alloy Nickel
Housing Material Polycyclohexylenedimethylene Terephthalate (PCT), Polyester Polyester Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Operating Temperature -55°C ~ 125°C -55°C ~ 105°C -55°C ~ 125°C
