Please send RFQ , we will respond immediately.

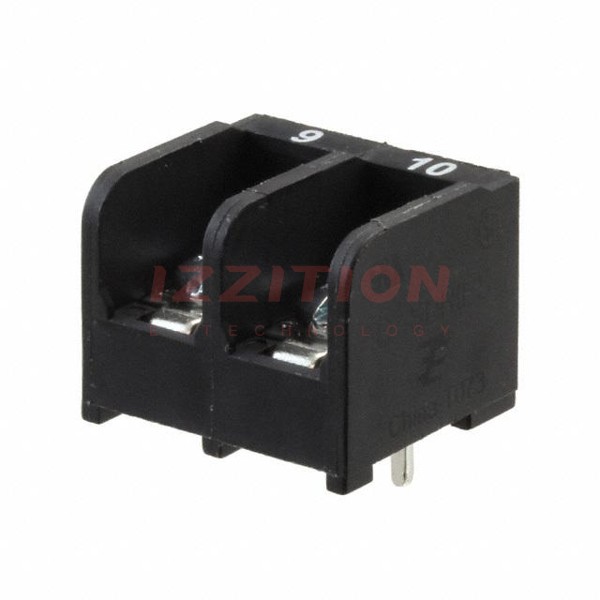

| Part Number | 5-1546686-2 | 5-1546686-6 | 5-1546686-3 | 5-1546686-4 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Terminal Block Type | Barrier Block | Barrier Block | Barrier Block | Barrier Block |
| Number of Circuits | 2 | 3 | 5 | 8 |
| Number of Wire Entries | 2 | 3 | 5 | 8 |
| Pitch | 0.375" (9.53mm) | 0.375" (9.53mm) | 0.375" (9.53mm) | 0.375" (9.53mm) |
| Number of Rows | 1 | 1 | 1 | 1 |
| Current Rating (Amps) | 25A | 25A | 25A | 25A |
| Voltage Rating | 300V | 300V | 300V | 300V |
| Wire Gauge | 12-22 AWG | 12-22 AWG | 12-22 AWG | 12-22 AWG |
| Top Termination | Screws | Screws with Captive Plate | Screws | Screws |
| Bottom Termination | PC Pin | PC Pin | PC Pin | PC Pin |
| Barrier Type | 3 Wall (Tri) | 3 Wall (Tri) | 3 Wall (Tri) | 3 Wall (Tri) |
| Features | Positions Stamped | - | Positions Stamped | Positions Stamped |
| Color | Black | Black | Black | Black |
