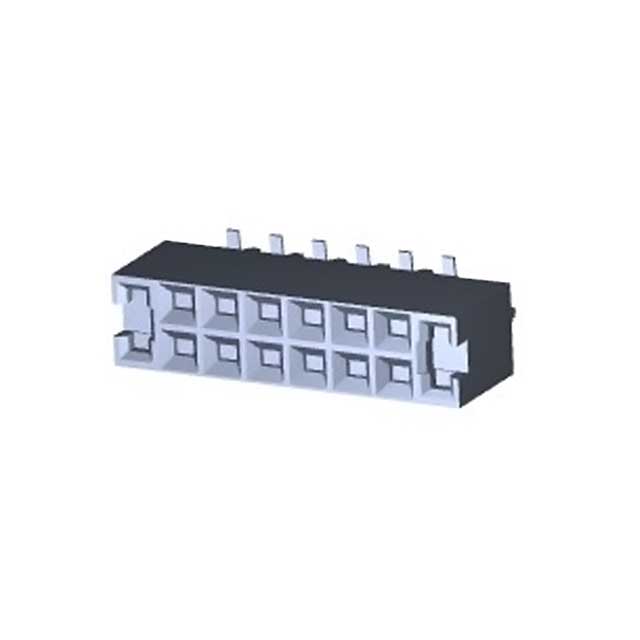

| Part Number | 5-147746-6 | 5-147746-8 | 5-147726-6 | 5-147741-6 |
|---|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Product Status | Active | Active | Active | Active |
| Connector Type | Receptacle, Bottom or Top Entry | Receptacle, Bottom or Top Entry | Receptacle, Bottom or Top Entry | Receptacle, Bottom or Top Entry |
| Contact Type | Female Socket | Female Socket | Female Socket | Female Socket |
| Style | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable | Board to Board or Cable |
| Number of Positions | 12 | 16 | 7 | 12 |
| Number of Positions Loaded | All | All | All | All |
| Pitch - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) | 0.100" (2.54mm) |
| Number of Rows | 2 | 2 | 1 | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) | 0.100" (2.54mm) | - | 0.100" (2.54mm) |
| Mounting Type | Surface Mount | Surface Mount | Through Hole | Surface Mount |
| Termination | Solder | Solder | Solder | Solder |
| Fastening Type | Push-Pull | Push-Pull | Push-Pull | Push-Pull |
| Contact Finish - Mating | Gold | Gold | Gold | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) | 10.0µin (0.25µm) | 10.0µin (0.25µm) | 30.0µin (0.76µm) |
| Insulation Color | Black | Black | Black | Black |
| Insulation Height | 0.265" (6.73mm) | 0.265" (6.73mm) | 0.265" (6.73mm) | 0.265" (6.73mm) |
| Contact Length - Post | - | - | 0.125" (3.18mm) | - |
| Operating Temperature | -65°C ~ 125°C | -65°C ~ 125°C | -65°C ~ 125°C | -65°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Contact Finish - Post | Tin | Tin | Tin | Tin |
| Mated Stacking Heights | - | - | - | - |
| Ingress Protection | - | - | - | - |
| Features | Board Lock, Pick and Place | Board Lock, Pick and Place | - | Pick and Place |
| Current Rating (Amps) | 2A | 2A | 2A | 2A |
| Voltage Rating | - | - | - | - |
